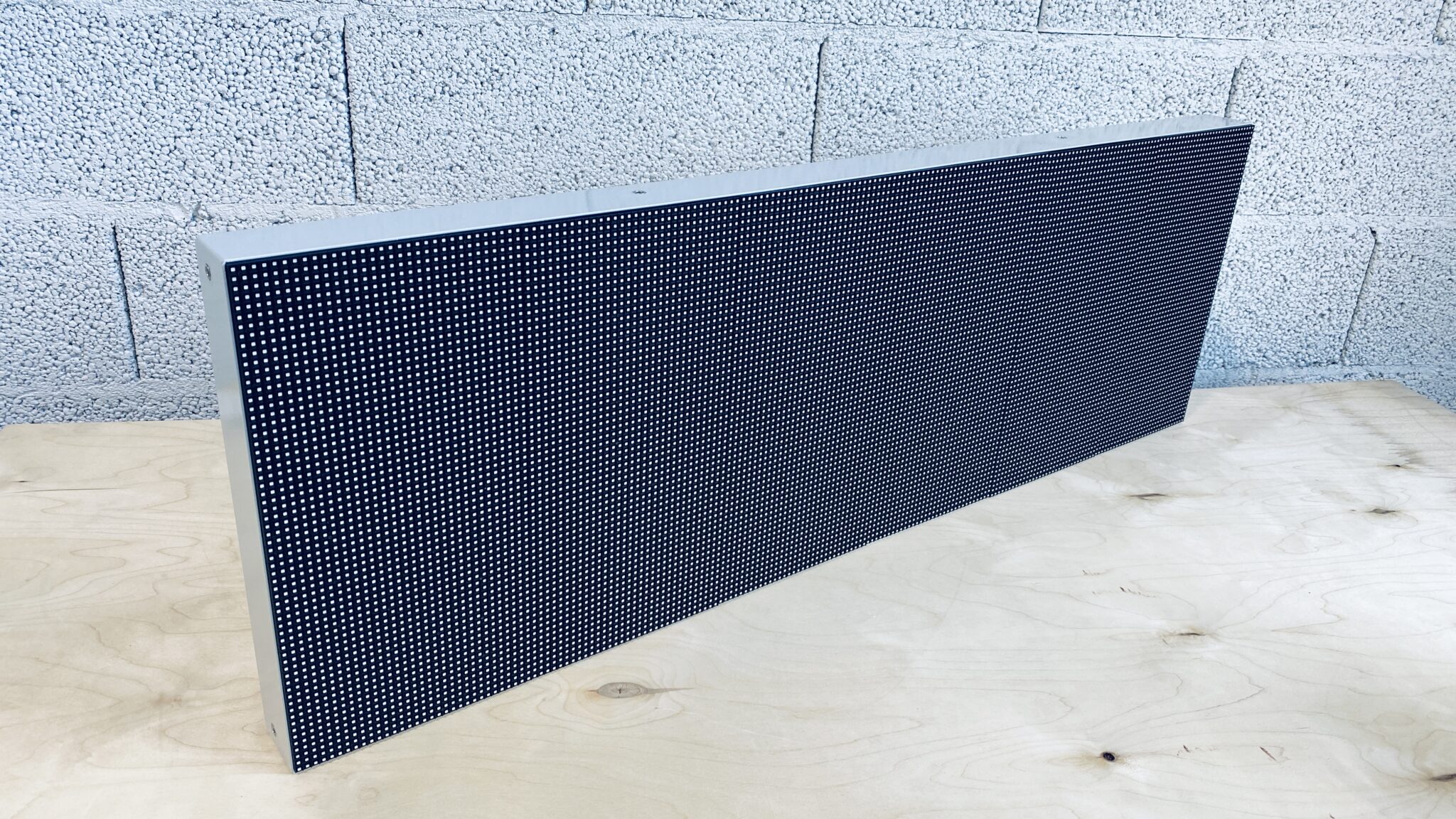

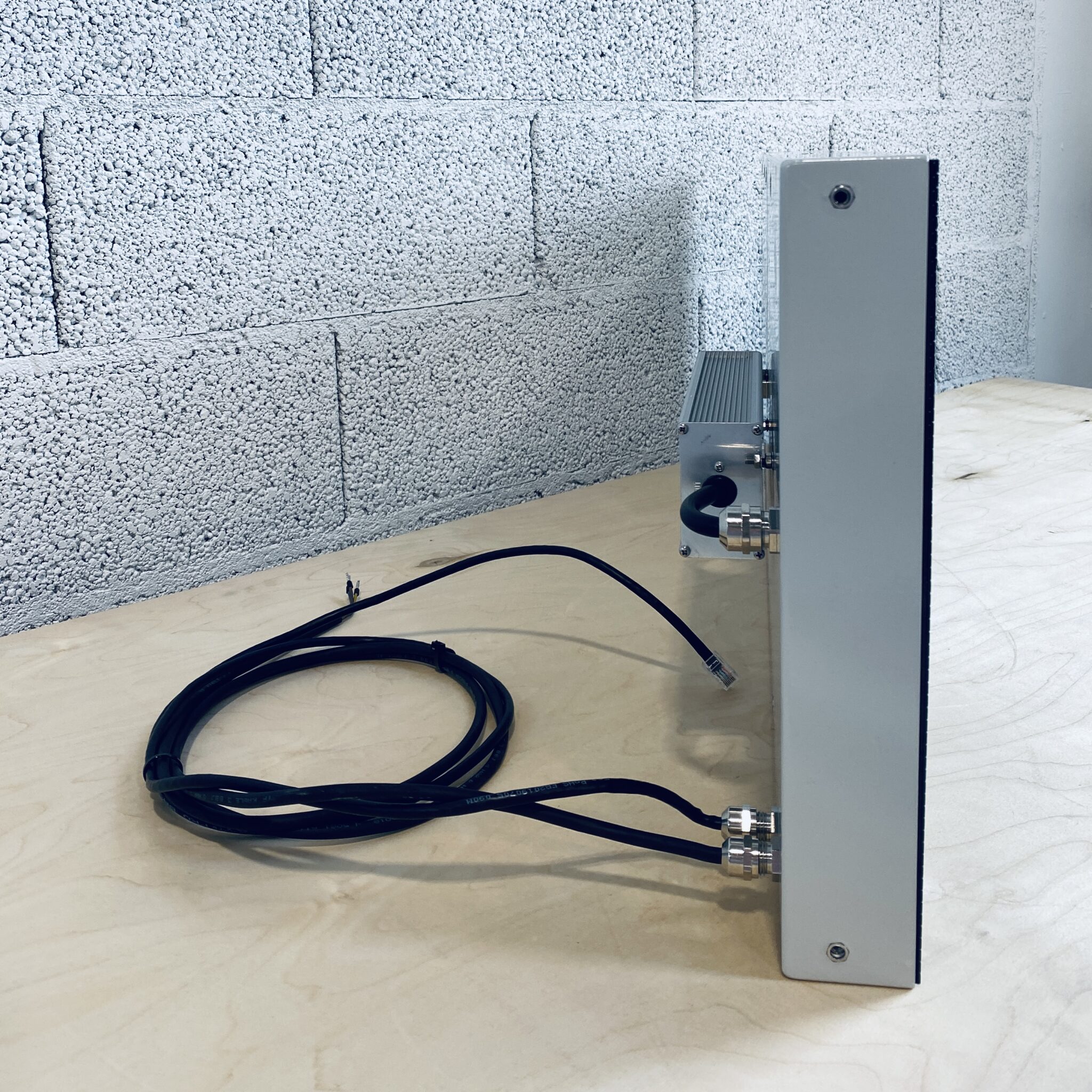

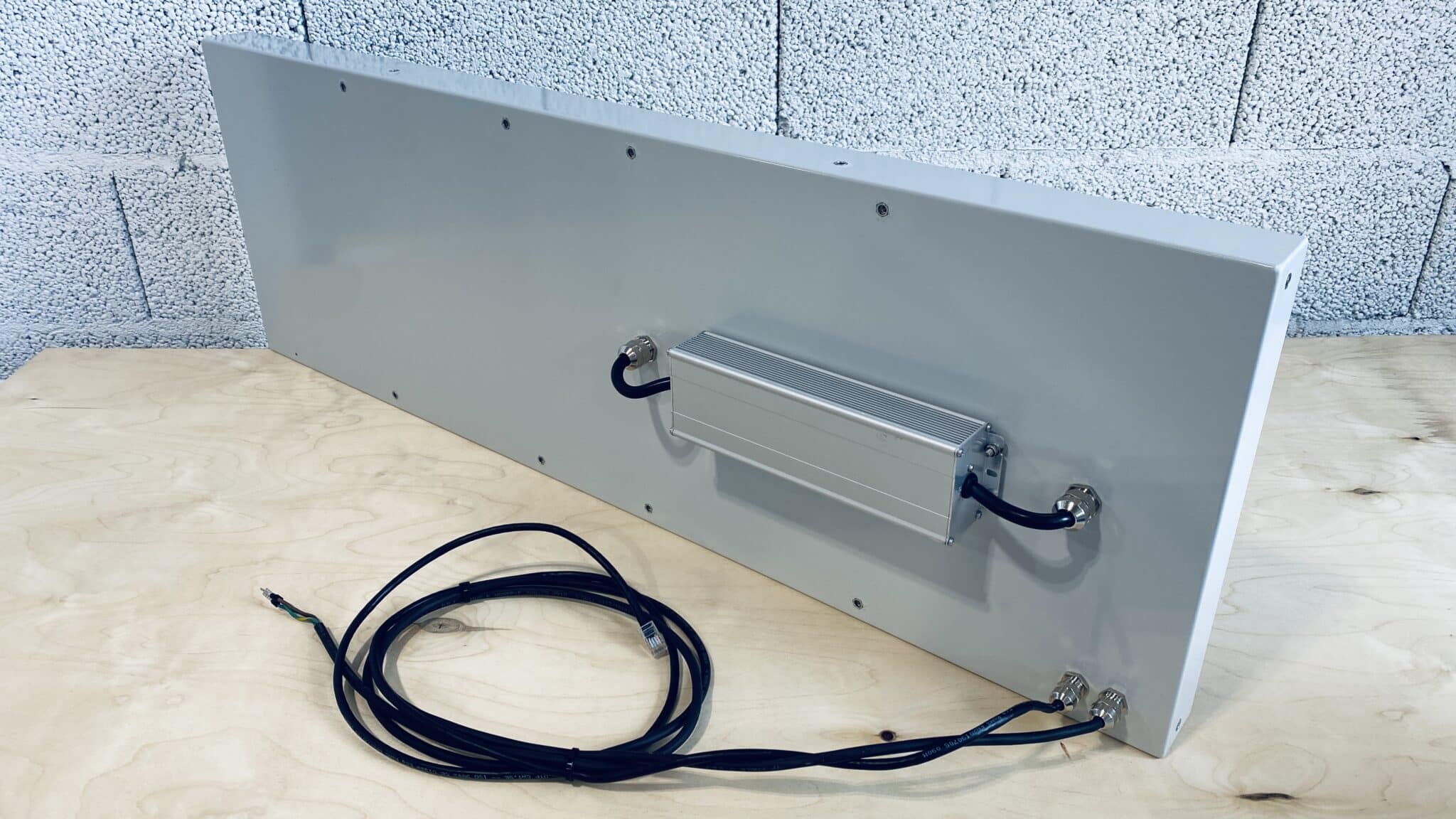

MODEL: DS-960×320
DS-960×320
Features
- Pixel Pitches in mm: P4 | P5 | P8 | P10
- Full color and full matrix high quality LED SMD arrays
- Supported media: text, png, moving gif
- Software based brightness automation
- Fanless design for extra durability
- Verified high-end components
- Suitable for use in port free-flow traffic management
- Fit for use as part of Port Intelligent Transport Systems
- API communication protocol
Optional Extras
- Brightness sensor
- WiFi, GPRS, 4G and 5G connectivity
- Tampering detection – SMS/e-mail/dry contact
- Horn, flash, relay output etc.
- Custom design for customer specific model
- Custom software for Client specific integrations
- Extended warranty
- Marine version
| Pixel Pitch | P8 |
| Resolution | 120x40 pixels |
| Brightness | > 6500 nits |
| Display Type | Full matrix |
| LED Color | Full colour |
| Dimensions (WxH) | 960x320 mm |
| Weight | 10 kg |
| Interface Port | LAN |
| Operation | 24/7 |
| Operating Temperature | -35˚C … +50 |
| Input Voltage | 240VAC |
| Power Consumption Avg. | 30W |
| IP Rating | IP65 |
| Certification | CE, RoHS |
| Warranty | 1 year |
| Color | Black matte |
Primary Applications and Target Markets
The DS Model LED displays are versatile and ideal for various industries. Its primary applications include:
- Traffic Management: Useful in relaying up-to-the-minute traffic information, road closures, and other guidance, especially on highways and urban areas.
- Logistics and Warehousing: Facilitates real-time communication in ports, warehouses, and other logistics hubs, making processes smoother by directing vehicles and personnel efficiently.
- Public Transportation: Perfect for train and bus stations, offering timely schedule updates and instructions to passengers.
This display model not only meets functional requirements but exceeds expectations for reliability, cost-effectiveness, and ease of maintenance, offering clear advantages in environments where dependable communication is critical.
