MODEL: DS-320×320

DS-320×320

Features

  • Pixel Pitches in mm: P4 | P5 | P8 | P10

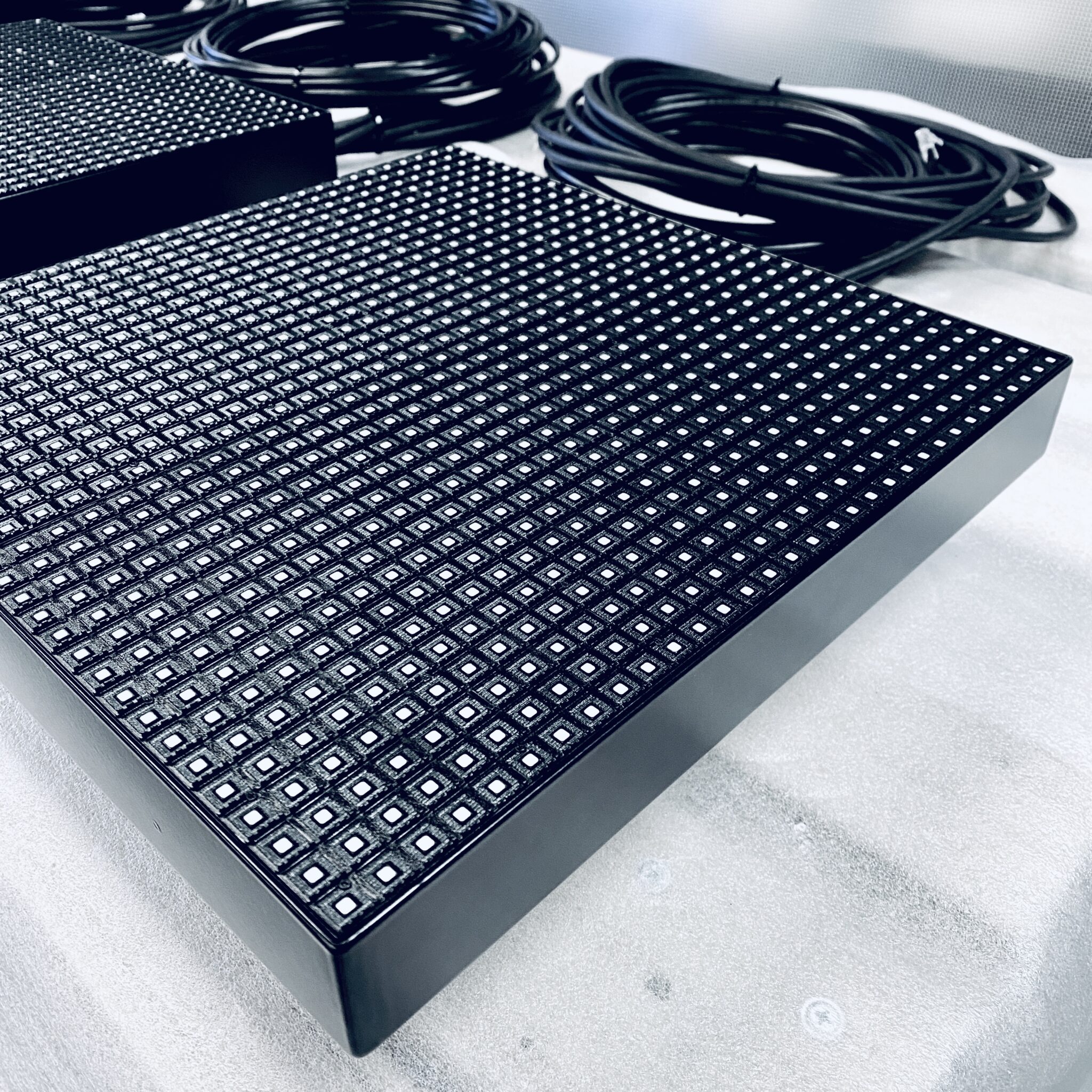

  • Full color and full matrix high quality LED SMD arrays
  • Supported media: text, png, moving gif
  • Software based brightness automation
  • Fanless design for extra durability
  • Verified high-end components

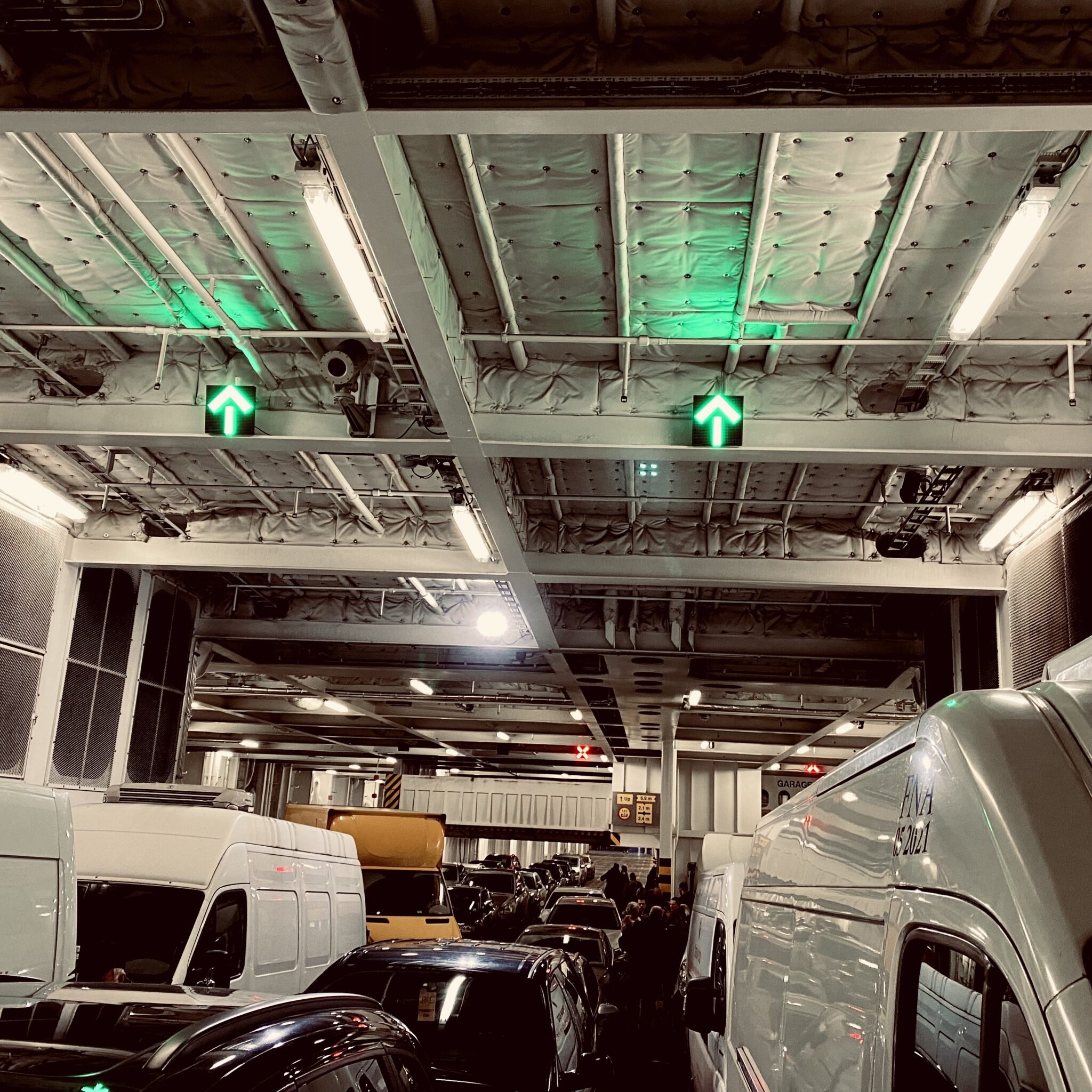

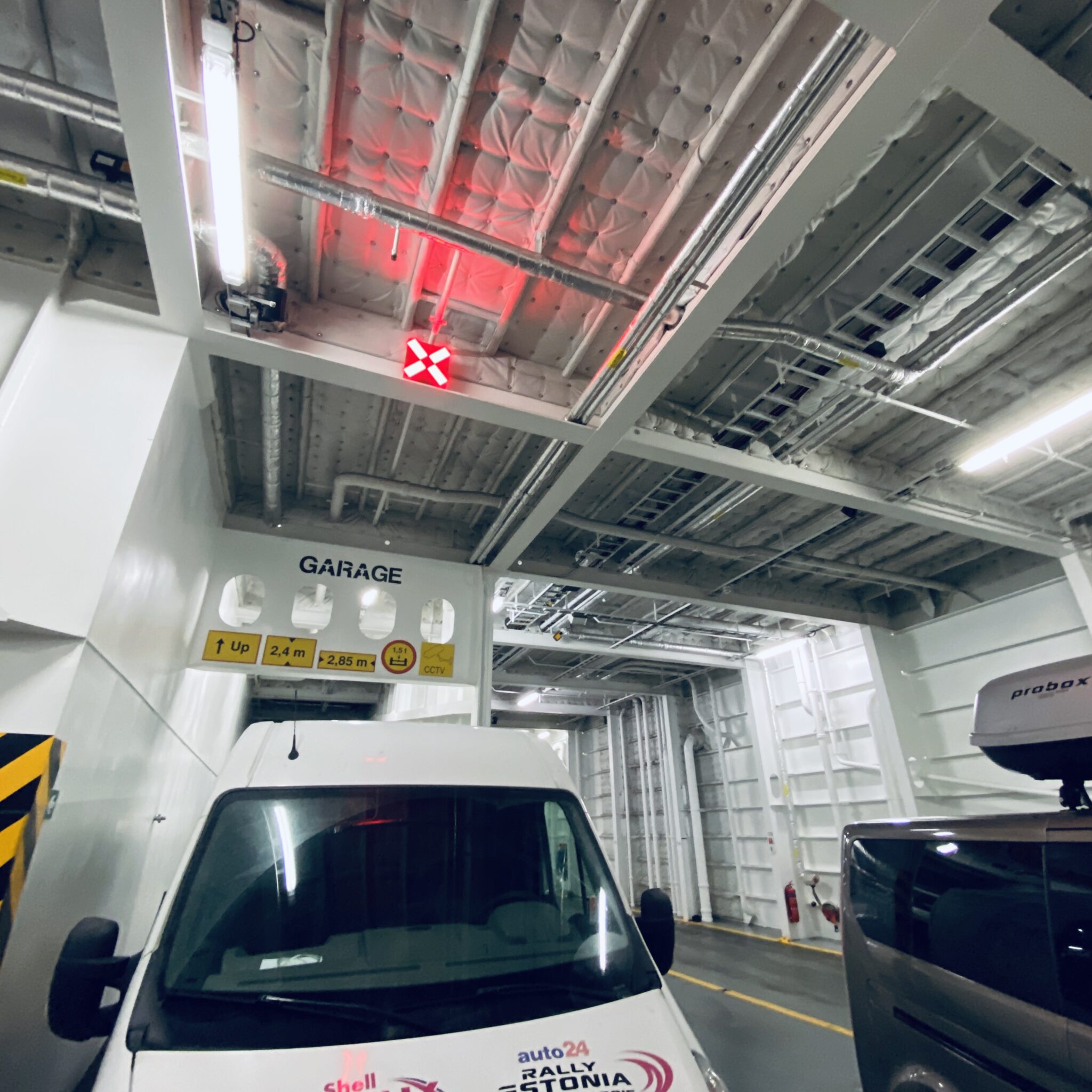

  • Suitable for use in port free-flow traffic management
  • Fit for use as part of Port Intelligent Transport Systems
  • API communication protocol


Optional Extras

  • Brightness sensor
  • WiFi, GPRS, 4G and 5G connectivity
  • Tampering detection – SMS/e-mail/dry contact
  • Horn, flash, relay output etc.
  • Custom design for customer specific model
  • Custom software for Client specific integrations
  • Extended warranty
  • Marine version
Pixel PitchP8
Resolution40x40 pixels
Brightness> 6500 nits
Display TypeFull matrix
LED ColorFull colour
Dimensions (WxHxD)320x320 mm
Weight3 kg
Interface PortLAN
Operation24/7
Operating Temperature-35˚C … +50
Input Voltage240VAC
Power Consumption Avg.25W
IP RatingIP65
CertificationCE, RoHS
Warranty1 year
ColorBlack matte

Primary Applications and Target Markets

The DS Model LED displays are versatile and ideal for various industries. Its primary applications include:

  • Traffic Management: Useful in relaying up-to-the-minute traffic information, road closures, and other guidance, especially on highways and urban areas.
  • Logistics and Warehousing: Facilitates real-time communication in ports, warehouses, and other logistics hubs, making processes smoother by directing vehicles and personnel efficiently.
  • Public Transportation: Perfect for train and bus stations, offering timely schedule updates and instructions to passengers.

This display model not only meets functional requirements but exceeds expectations for reliability, cost-effectiveness, and ease of maintenance, offering clear advantages in environments where dependable communication is critical.

Our communication protocol is based on HTTP GET requests and is that simple:

GET http://IP:PORT/slds?id=LED1&layout=FULLSCREEN&CONTENT= FREETEXT PICTURE GIF NUMBER
