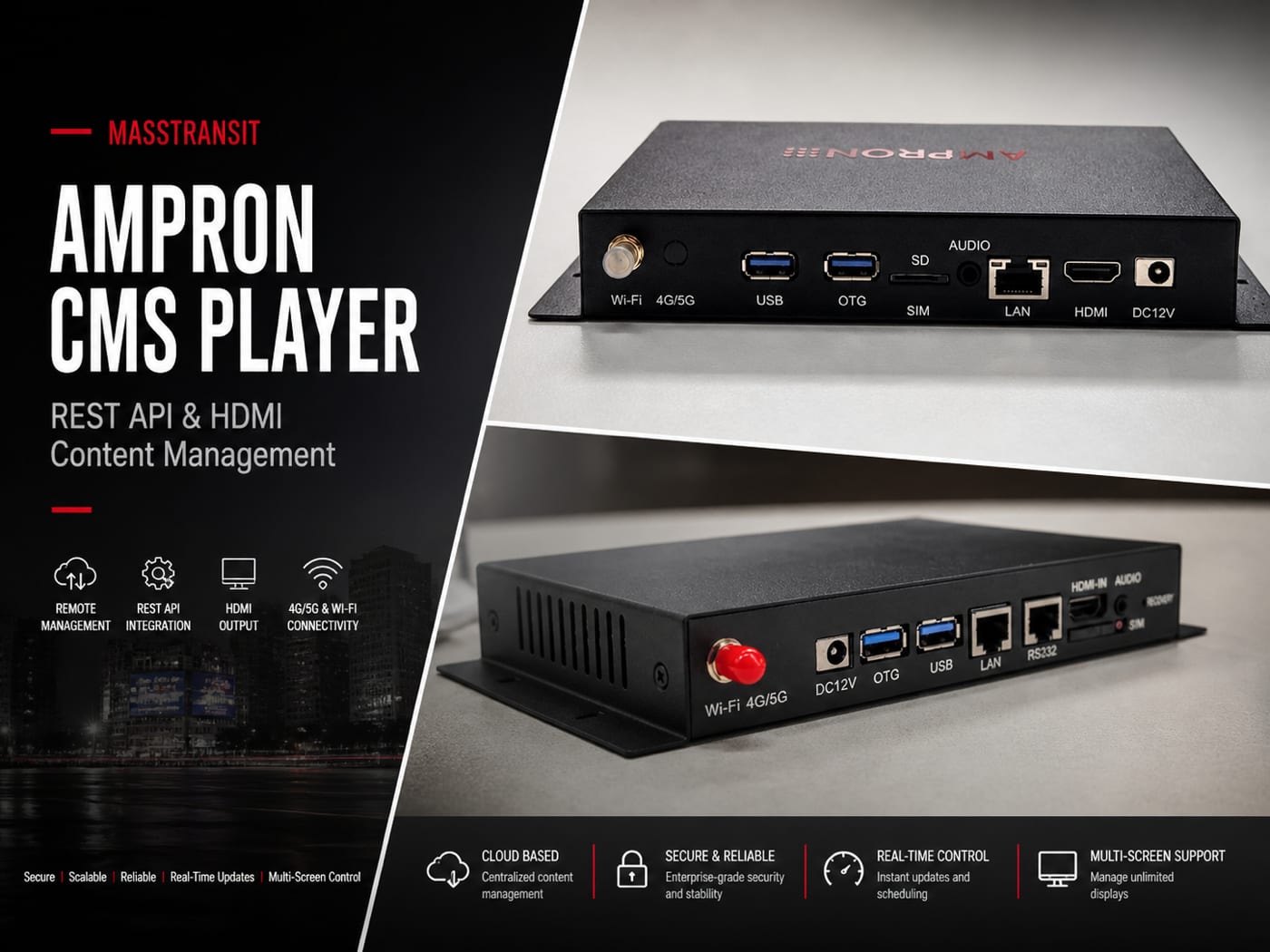

Ampron CMS Player — REST API & HDMI Content Management

Name: Ampron CMS Player — REST API & HDMI Content Management
Brand: Ampron
Availability: InStoreOnly

The Ampron CMS Player is designed for integrators who need flexible content input control for LED or LCD display installations. It accepts REST API push commands, HDMI video input and scheduled playlist content — outputting to any Ampron display over a single network or cable connection. Suitable for airports, retail, transit environments and control rooms where multiple content sources need unified management.

REST APIHDMI inputScheduled playlists

Request project estimate API documentation Spec sheet PDF

Best for

Digital signage content management
Multi-display network control
Retrofit installations

Not ideal for

Standalone display hardware
Real-time data integration without API

Lead time

4–6 weeks

EXW Tallinn · from order confirmation

Integration

Connects to the systems you already run

REST API →

Native HTTP/JSON control via API

SNMP

Network monitoring and alerts

Ampron firmware

Maintained and updated by Ampron

3rd-party CMS

Integrate via documented API

Technical specifications

OS: Android 7.1.2
CPU: RK3399 64-bit
GPU: ARM Mali-T864
Supported Media: Text, audio, video, web areas
Network: 100M/1000M Ethernet; optional 2.4/5G Wi-Fi or 4G

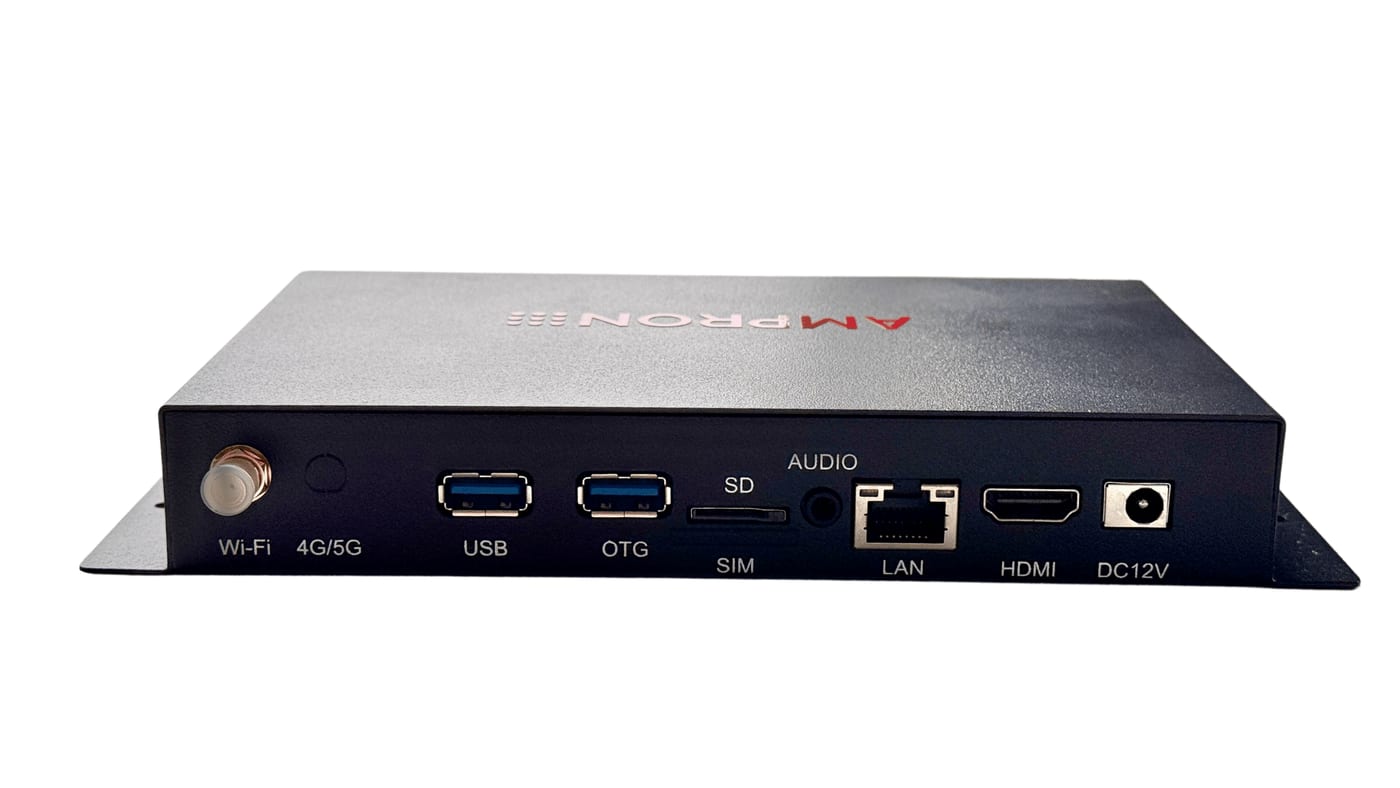

HDMI Output: 1 × HDMI 2.0
USB: 2 × USB 3.0
Audio: L/R line out; amplifier 2 × 5 W (8 Ω)
Image Rotation: 0°, 90°, 180°, 270°
Power Input: AC 110–230 V (DC 12 V 1.5 A output)
Operating Temperature: −20 °C to +70 °C
Interface: REST HTTP API
Certification: CE, RoHS

Download full technical specification (PDF)

Features

REST API content push — update display content from any backend system
HDMI video input — pass live video or presentation content to display
Scheduled playlist mode — time-based content rotation without active backend
Compatible with DR Series, DS Series, LCD EN 50121 and LED Video Wall
Compact enclosure for wall, rack or behind-screen installation
Supports multiple zones — split-screen content from a single device

Certifications: CERoHS

Ask about this product

A specific question about specs, sizing or integration? We'll reply within 24 hours.

Integrator network

Need someone to install it and connect it to your systems?

Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.

See our partners →

Applications

AirportsRail & RoadSmart CitiesIndustrial
