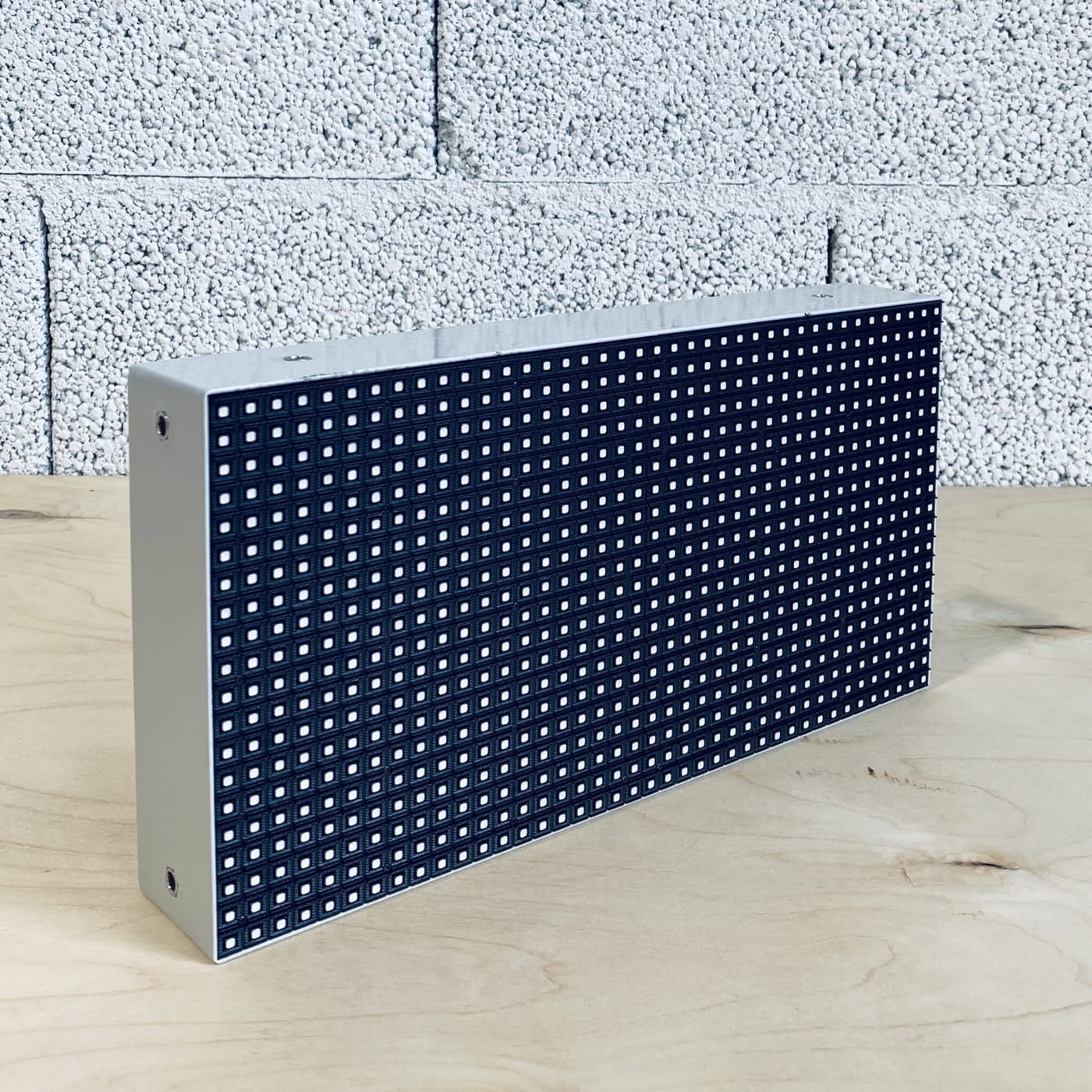

DS Series — Compact Outdoor & Indoor LED Displays
The DS Series covers compact formats for sites where the DR Series is oversized: parking structures, port and weighbridge lanes, logistics yards, transit shelters and production halls, indoors or out. Six standard models from 320 × 160 mm to 960 × 640 mm, P4, P5 or P8 pixel pitch, IP65, HTTP API-ready.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Not sure which size you need?
Type the size you have in mind and we will point you to the closest standard model, with full specs and recommended opening size.
Best for
- Compact multi-zone installations
- Bus stops and transit
- Indoor/outdoor status boards
- Production floor displays
Not ideal for
- Large-format outdoor advertising
- Single large-screen setups
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- IP Rating
- IP65
- Operating Temperature
- −40 °C to +60 °C
- Pixel Pitch
- P4, P5 or P8 by model
- Brightness
- 4,500–6,000 cd/m² depending on pitch
- Viewing Angle
- H:140° ±10° / V:130° ±10° (P8); H:140° / V:120° (P5)
- Colour
- Full colour RGB
- Interface
- LAN + HTTP API
- Power Supply
- 230–240 VAC, 50 Hz
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
- Delivered With
- Built-in controller and power supply (on the DS-960x320 the supply is mounted on the rear of the cabinet); power and network cables fitted at the factory; configured and tested before shipping. Mounting brackets optional.
Features
- Six standard sizes from 320 × 160 mm to 960 × 640 mm
- IP65 rated, protected against dust and water jets
- HTTP API with identical interface to DR Series — shared integration code
- Compact enclosure for flush-wall or ceiling-mount installation
- 24/7 continuous operation — engineered for unattended infrastructure use
Optional matte anti-glare front cover: a bent polymer cover that fits over the display face for extra protection in ports, dusty sites or wherever stones and debris fly. Made to size for any DS model. Ask your sales contact.
Ask about this product
A specific question about specs, sizing or integration? We'll reply within two working days.
Individual models
Explore DS Series LED configurations
DS-320x160
Smallest DS format — parking bay indicators, entry status and single-line guidance.
DS-640x160
Wide single-line format for aisle headers, direction arrows and zone labels.
DS-320x320
Square compact format for directional signs, lift lobbies and access control displays.
DS-640x320
The most widely deployed DS model — two-line text and graphic guidance.
DS-960x320
Wide two-zone compact board for split-message control and queue management.
DS-960x640
Largest DS format — multi-line departure boards, warehouse status and gate displays.
Model range
Available configurations
| Model | Description |
|---|---|
DS-320x160DS-320x160-P8 | Smallest format — 320×160 mm, P8 pitch. Resolution 40×20 pixels. Approx. 2 kg, 15 W avg. Single-line text or icon. Parking bay indicators. |
DS-640x160DS-640x160-P8 | Wide single-line — 640×160 mm, P8 pitch. Resolution 80×20 pixels. Approx. 5 kg, 25 W avg. Aisle headers and production line status. |
DS-320x320DS-320x320-P5 | Square compact — 320×320 mm, P5 pitch standard, P4 and P8 available. Resolution 64×64 pixels. Approx. 3 kg, 20 W avg. Icon and text combinations. Lift lobbies, entry indicators. |
DS-640x320DS-640x320-P8 | Standard compact — 640×320 mm, P8 pitch. Resolution 80×40 pixels. Approx. 7 kg, 35 W avg. Two-line text or graphic. Most common DS model. |
DS-960x320DS-960x320-P8 | Wide two-zone — 960×320 mm, P8 pitch. Resolution 120×40 pixels. Approx. 10 kg. Split message control via API. Queue management. |
DS-960x640DS-960x640-P5 | Large compact — 960×640 mm, P5 pitch standard, P4 and P8 available. Resolution 192×128 pixels. Approx. 20 kg. Multi-line departure/arrival boards and warehouse status. |
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Product catalog
Related products
Outdoor LED
DR Series LED
Outdoor message boards for roads, ports and industrial traffic guidance.
Large-format LED
LED Video Walls
Large outdoor LED displays engineered per project for airport aprons, border crossings, ports and industrial yards.
Industrial clocks
Digital Wall Clocks
NTP-synchronised LED clocks for transport hubs and production facilities.
Live deployments
This product in the field
Waybiller · Estonia
Real-Time Traffic Guidance at the Port of Kunda
Waybiller integrated four compact Ampron LED displays into the weighbridge cabinets at the Port of Kunda — showing live weight, vehicle number and unloading instructions to truck drivers in real time.
Read case study → Port of Helsinki · Finland
LED Information Displays at the Port of Helsinki
Outdoor-rated LED information displays in service at the Port of Helsinki since 2019, bought directly from Ampron in nine orders through 2025, and serviced by Ampron's own field team.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
