Large-format LED
LED Video Walls - Large Format
LED video walls are built from modular panel arrays, allowing any resolution and aspect ratio to be assembled on-site. Ampron supplies both indoor (P1.86 to P5) and outdoor (P4 to P10) variants under the Gold series label. Integration is via REST API or HDMI input; brightness is factory-calibrated to environment.
Best for
- Large-format display installations
- Stadiums and arenas
- Control rooms
- Outdoor advertising and events
Not ideal for
- Single-display guidance systems
- Harsh weather without enclosure
Lead time
8–10 weeks
EXW Tallinn · from order confirmation
Integration
Connects to the systems you already run
Technical specifications
- Indoor Pixel Pitches
- P1.86, P2, P2.5, P3, P4, P5
- Outdoor Pixel Pitches
- P4, P5, P8, P10
- Indoor Brightness
- ≥600 nits
- Outdoor Brightness
- 6000–7000 nits
- Indoor IP Rating
- IP43
- Outdoor IP Rating
- IP65
- Indoor Panel Size
- 640×480×85 mm (0.307 m²)
- Outdoor Panel Size
- 960×960×90 mm (1 m²)
- LED Modules
- RGB SMD LED, contrast 5000:1
- Refresh Rate
- ≥3840 Hz
- LED Lifetime
- ≥100,000 hours at 50% brightness
- MTBF
- >10,000 hours
- Operating Temperature
- Indoor 0–50 °C / Outdoor −30–50 °C
- Interface
- LAN CAT 5/5e/6 + REST HTTP or HDMI
- Configuration
- Modular panel arrays — custom resolution and aspect ratio
- Serviceability
- Front accessible panels
Features
- Modular panel system — any resolution and aspect ratio
- Indoor (P1.86–P5) and outdoor (P4–P10) variants
- Factory-calibrated brightness for environment type
- REST API or HDMI content input
- Front or rear serviceable panel design
- Consistent colour across all panels via hardware calibration
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Model range
Available configurations
| Model | Description |
|---|---|
Indoor Gold P1.86INDOOR-GOLD-P1.86 | Ultra-fine pitch — P1.86, IP43. Min. viewing 1.9 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Conference rooms, control rooms, premium lobbies. |
Indoor Gold P2INDOOR-GOLD-P2 | High resolution — P2, IP43. Min. viewing 2 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Command centres and 4K video walls. |
Indoor Gold P2.5INDOOR-GOLD-P2.5 | Indoor standard — P2.5, IP43. Min. viewing 2 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Large lobby, retail, departure halls. |
Indoor Gold P3INDOOR-GOLD-P3 | Indoor wide-format — P3, IP43. Min. viewing 3 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Event screens and auditorium installations. |
Indoor Gold P4INDOOR-GOLD-P4 | Indoor/semi-outdoor — P4, IP43. Min. viewing 4 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Sports venues and open halls. |
Indoor Gold P5INDOOR-GOLD-P5 | Indoor large-pitch — P5, IP43. Min. viewing 5 m. Panel 640×480×85 mm, 7.84 kg. ≥600 nits. Long-distance viewing, warehouses. |
Outdoor Gold P4OUTDOOR-GOLD-P4 | Fine-pitch outdoor — P4, IP65. Min. viewing 4 m. Panel 960×960×90 mm, 33 kg/m². 6000 nits. Facade displays and transport terminals. |
Outdoor Gold P5OUTDOOR-GOLD-P5 | Outdoor standard — P5, IP65. Min. viewing 5 m. Panel 960×960×90 mm, 33 kg/m². 6000 nits. Main video walls at airports and ports. |
Outdoor Gold P8OUTDOOR-GOLD-P8 | Outdoor medium-pitch — P8, IP65. Min. viewing 8 m. Panel 960×960×90 mm, 33 kg/m². 6500 nits. Roadside and stadium perimeter. |
Outdoor Gold P10OUTDOOR-GOLD-P10 | Outdoor long-distance — P10, IP65. Min. viewing 10 m. Panel 960×960×90 mm, 33 kg/m². 7000 nits. Highway and industrial yard large-scale. |
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Product catalog
Related products
Outdoor LED
DR Series LED
Outdoor message boards for roads, ports and industrial traffic guidance.
Compact LED
DS Series LED
Compact solutions for indoor and semi-outdoor environments.
Industrial clocks
Digital Wall Clocks
NTP-synchronised LED clocks for transport hubs and production facilities.
Live deployments
This product in the field
GoSwift OÜ · Finland

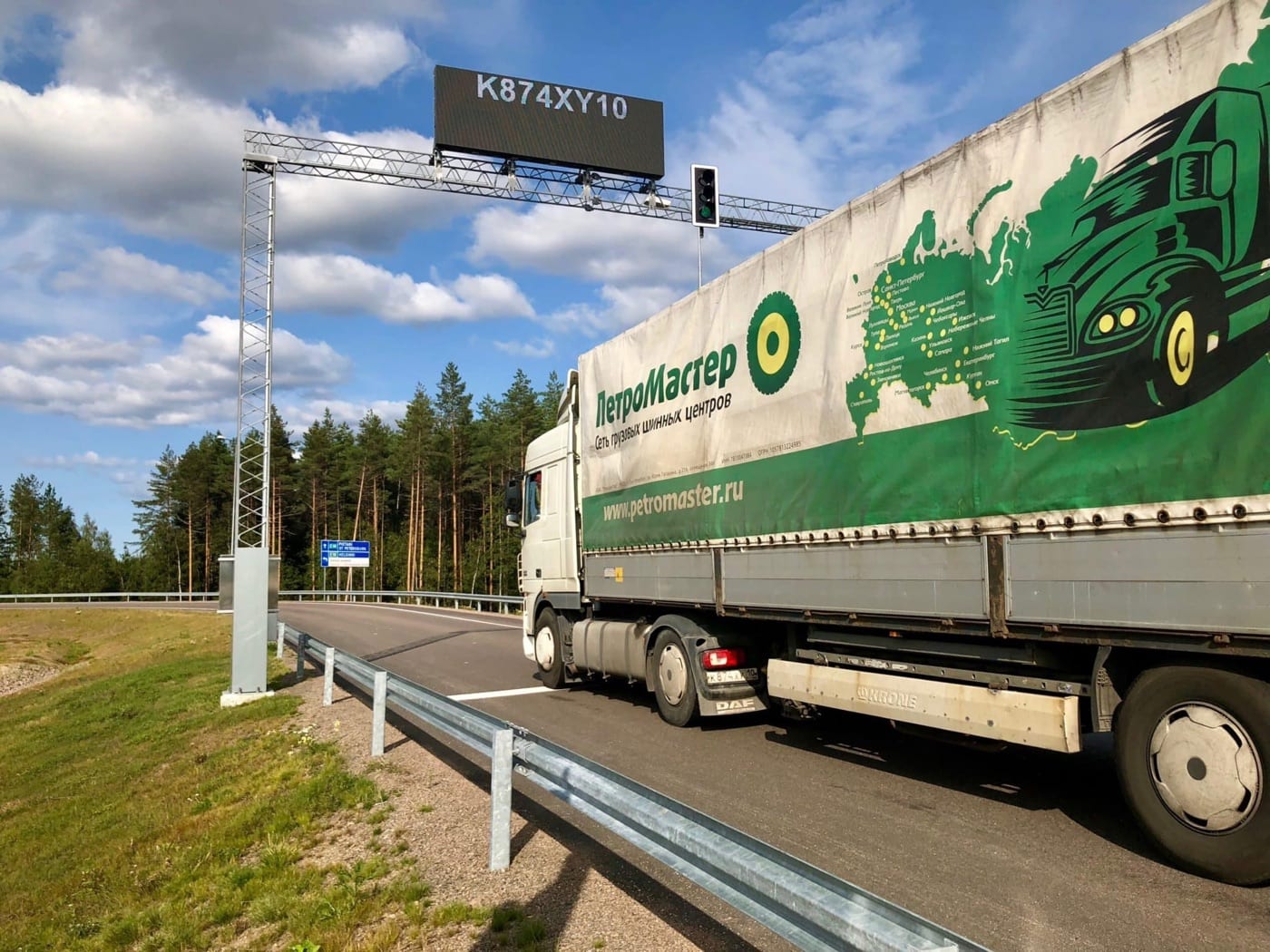

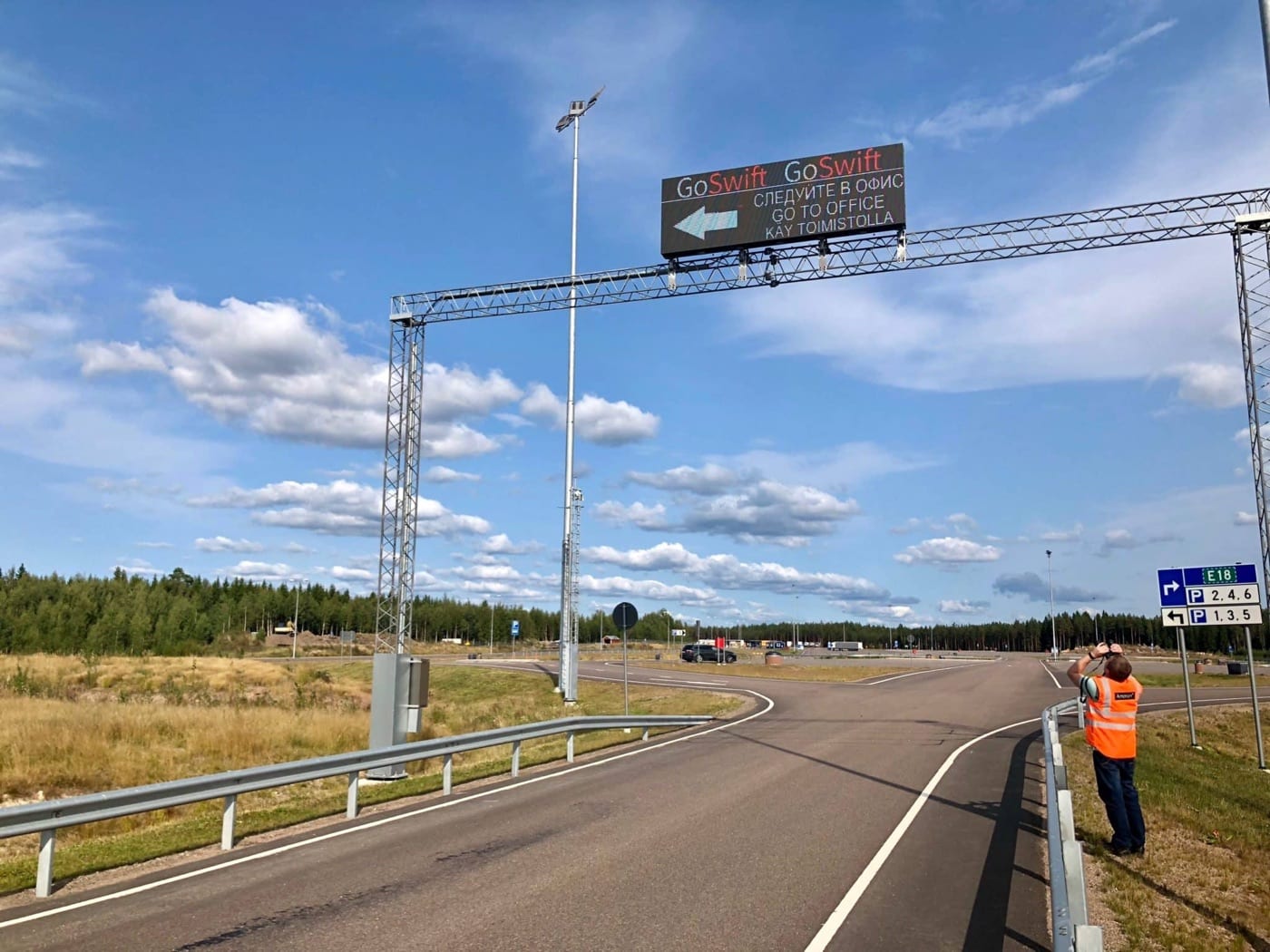

GoSwift — LED Queue Management at Vaalimaa Border Crossing
30 rugged outdoor LED message boards and two large Outdoor P10 video walls deployed for GoSwift's queue management service at the Vaalimaa border crossing — Estonia–Finland's busiest freight border.
Read case study →
Tallinn Airport · Estonia
De-Ice Operations Upgrade — Additional PAD Locations at Tallinn Airport
Expansion of Tallinn Airport's de-icing control system to additional PAD locations — adding stationary DR Series and LED video wall displays, generator charging capability and unified multi-PAD software control.
Read case study →Deployed at 2 sites in 2 countries since Infinity.
Specify this product for your project.
Contact us with installation location, display distance and required integration.
