Bus Arrival Information LED Display — Real-Time Passenger Information Boards

Name: Bus Arrival Information LED Display — Real-Time Passenger Information Boards
Brand: Ampron
Availability: InStoreOnly

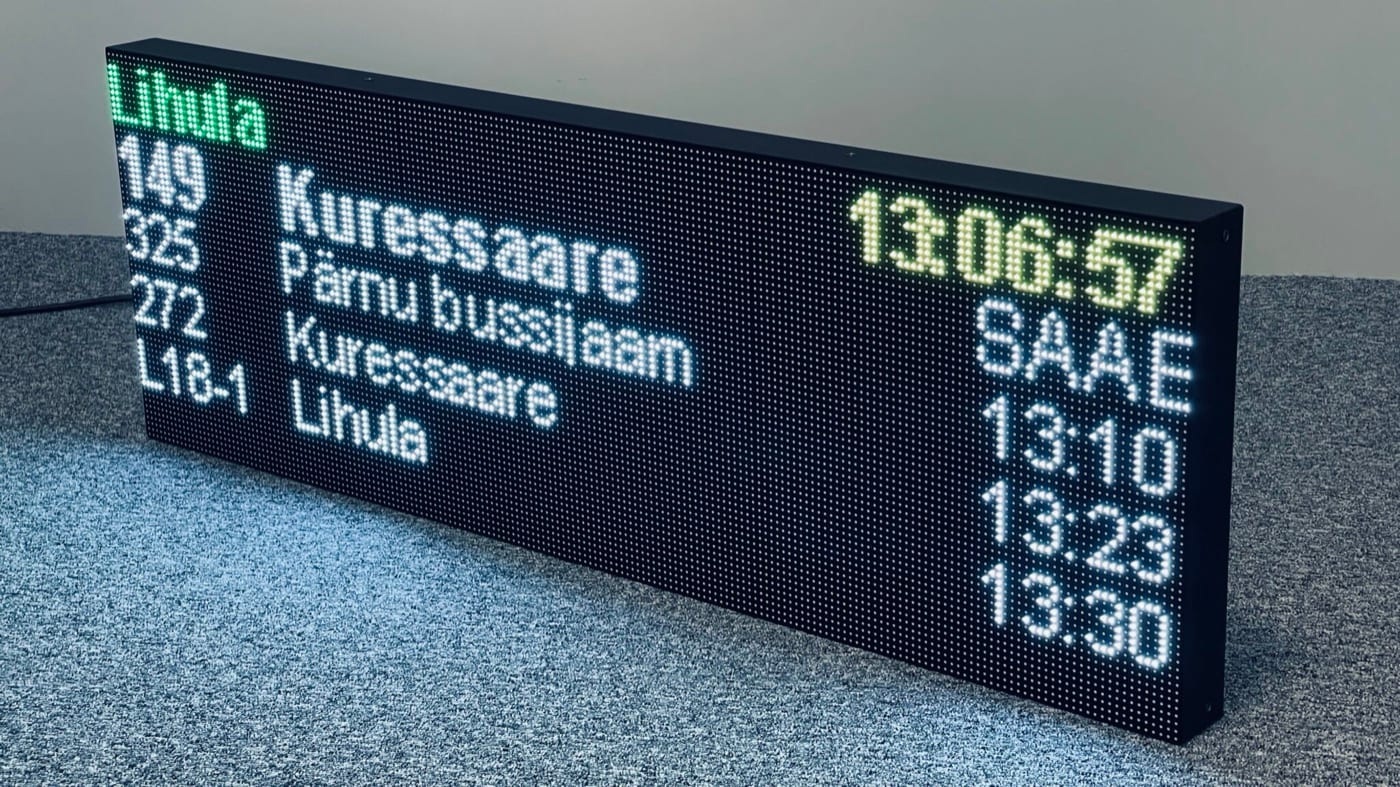

Ampron Bus Arrival Information LED Displays are full-matrix outdoor LED boards purpose-built for bus stop and transit shelter installations. They connect to any transit management platform via REST API — displaying real-time arrival predictions, route numbers, destination and service alerts. Multiple sizes available; all models are IP54-rated and operate in Nordic winter conditions. Suitable for integration with Ridango, GTFS-RT and custom transit backends.

Real-time arrivalsIP65REST API6500 nits

Request project estimate API documentation Spec sheet PDF

Best for

Bus stops and transit hubs
Real-time passenger information
Smart city deployments

Not ideal for

Indoor environments
Non-transit applications

Lead time

4–6 months

EXW Tallinn · from order confirmation

Integration

Connects to the systems you already run

REST API →

Native HTTP/JSON control via API

SNMP

Network monitoring and alerts

Ampron firmware

Maintained and updated by Ampron

3rd-party CMS

Integrate via documented API

Technical specifications

Pixel Pitch: P5
Brightness: 6500 nits
IP Rating: IP65
Operating Temperature: −35 °C to +50 °C
Colour: Full colour RGB (16 bit)
Connectivity: Ethernet, WiFi, 4G/3G/2G
Operation: 24/7
Serviceability: Front and back
Interface: REST HTTP
Enclosure: Stainless steel, vandal-resistant, single/double-sided

Download full technical specification (PDF)

Features

Full-matrix display — shows route number, destination, arrival time and service alerts
REST API integration — compatible with GTFS-RT, Ridango and custom transit backends
Real-time prediction update — content refreshes on every data change from backend
Graceful fallback to static timetable when live prediction is unavailable
IP54 rated — suitable for covered and semi-exposed bus shelter installations
Wide operating temperature — reliable through Nordic winter conditions

Certifications: CERoHS

Ask about this product

A specific question about specs, sizing or integration? We'll reply within 24 hours.

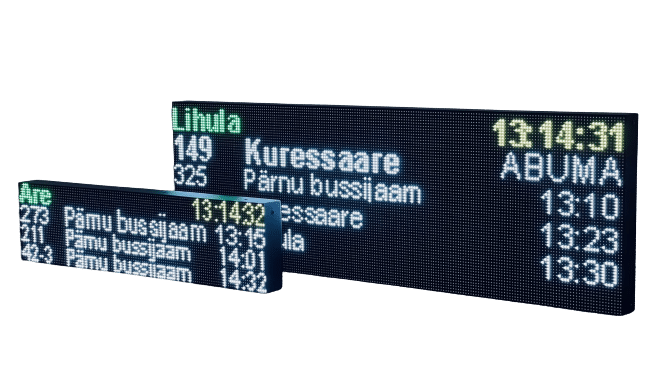

Model range

Available configurations

Model	Description
BS-960×320 `BS-960x320`	960 × 320 mm — standard single-stop arrival board, 2–3 rows of departure info.
BS-640×320 `BS-640x320`	640 × 320 mm — compact arrival board for smaller shelters and low-traffic stops.
BS-640×160 `BS-640x160`	640 × 160 mm — slim single-line board for minimal installations.

Integrator network

Need someone to install it and connect it to your systems?

Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.

See our partners →

Applications

Smart CitiesRail & RoadAirports
