DR-1040x1040 — Square Outdoor LED Message Board
The DR-1040x1040 provides a 960×960 mm square active area — the right format for gate entry indicators, bay status displays and access control signs where a landscape rectangle would be disproportionate. P8 pixel pitch is sharp from 8 metres. At 50 kg it is heavier than the DR-1040x720 but still two-person installable. Rated IP65, operating down to −40 °C. REST HTTP API is identical across all DR Series models — integrators control the DR-1040x1040 with the same endpoint structure as every other Ampron display.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Ports and logistics yards
- Airports and aprons
- Outdoor traffic guidance
- Industrial outdoor
Not ideal for
- Indoor installations
- Consumer or retail applications
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- Model
- DR-1040x1040
- Pixel Pitch
- P8 standard (P4, P5 available)
- Resolution
- 120×120 pixels
- Brightness
- ≥6,000 cd/m²
- Display Area
- 960×960 mm
- Dimensions
- 1040×1040×50 mm
- Front Panel
- Anti-glare acrylic (PMMA)
- Viewing Angle
- H:140° ±10° / V:130° ±10°
- Min Viewing Distance
- 8 metres
- Operating Temperature
- −40 °C to +60 °C
- IP Rating
- IP65
- Input Voltage
- 220–240 VAC, 50 Hz
- Power Avg
- 200 W
- Weight
- 50 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN CAT 5/5e/6 + REST HTTP
- Cables
- 3 m power cable, factory-fitted; IP67 waterproof RJ45 LAN socket
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
Annual operating cost (24/7)
Based on 200 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 960×960 mm square active area — proportioned for gate, bay and access control signs
- Available in P4, P5 and P8 pixel pitch — specify pitch to match your installation viewing distance
- ≥6,000 cd/m² brightness — full daylight and low-light visibility
- IP65 enclosure — permanent outdoor use in rain, snow and dusty environments
- REST HTTP API — identical endpoint structure across all DR Series models
- Same integration as DR-1040x720 — no additional development for mixed fleets
- −40 °C to +60 °C operating range — no cold-weather heater required
- 24/7 continuous operation — built for unattended long-term deployment
- SKU: DR-1040x1040 — available in P4, P5 and P8 pixel pitch

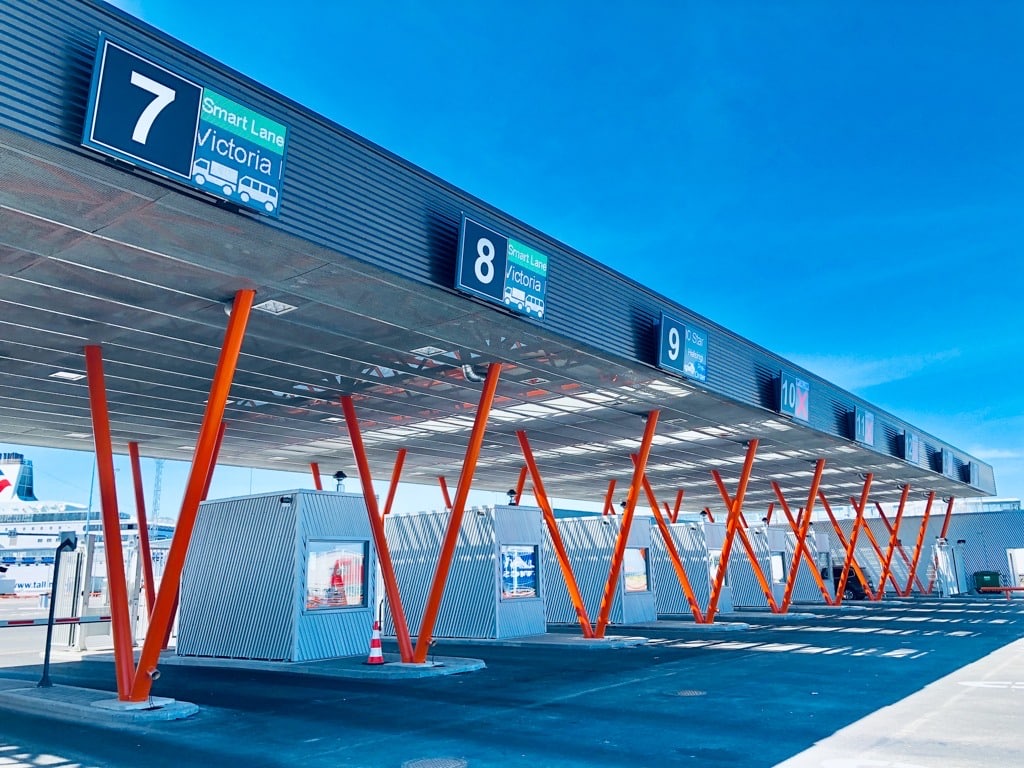

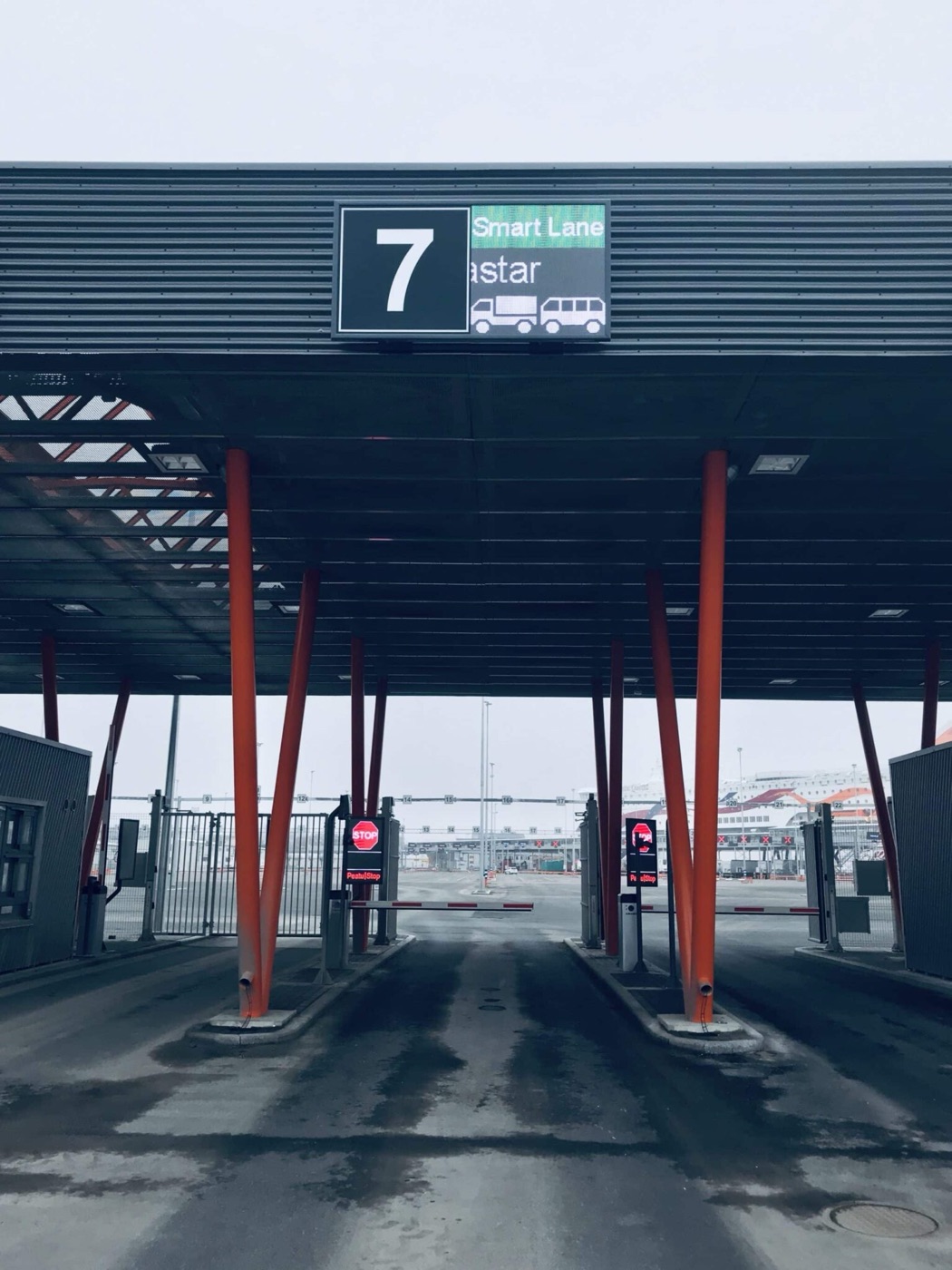

- Per-lane check-in boards — lane number, Smart Lane status and the ship name (Port of Tallinn)
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Live deployments
This product in the field

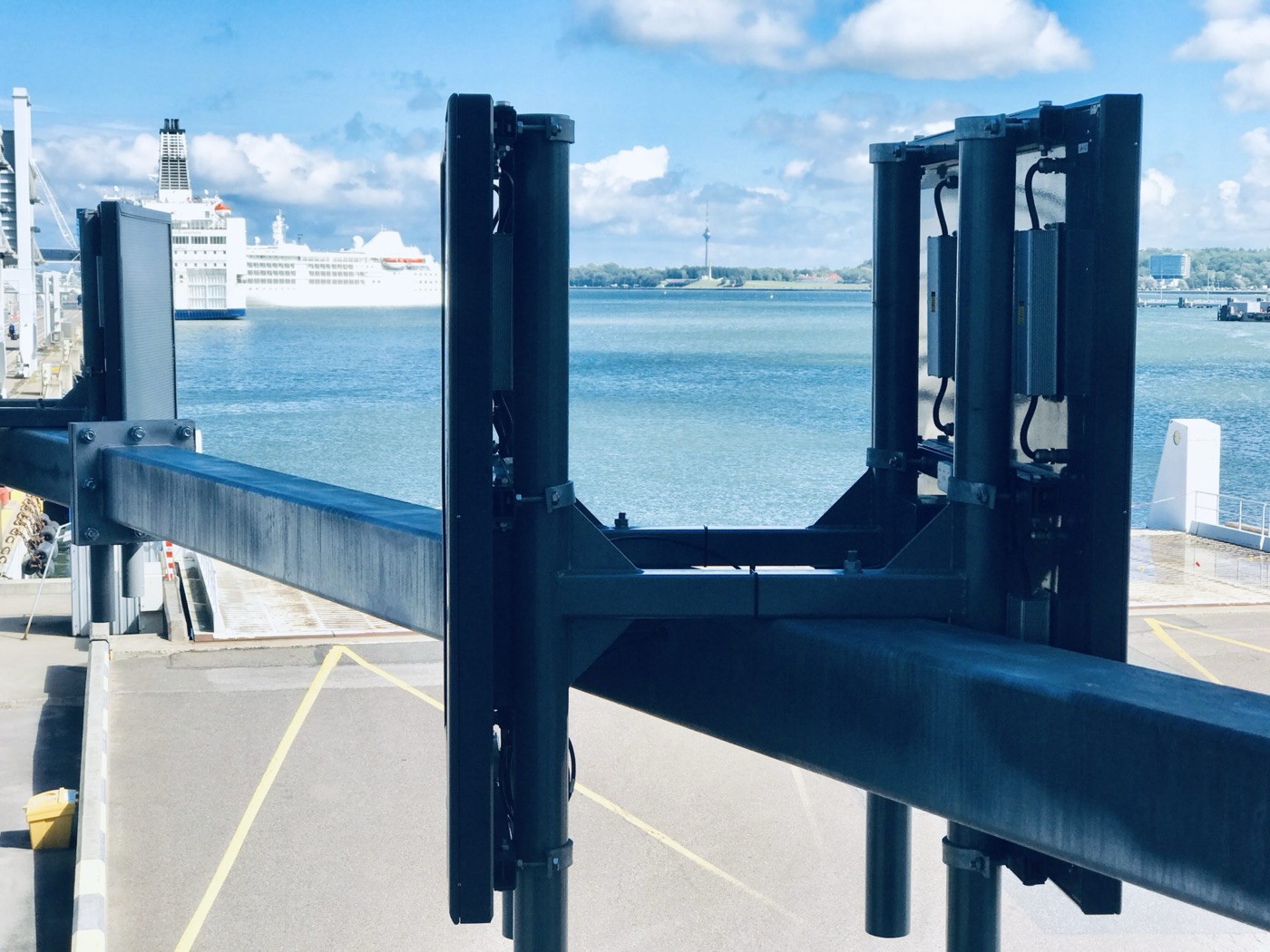

Port of Tallinn (AS Tallinna Sadam), originally delivered via Hansab AS · Estonia
LED Message Boards for the Smart Port Solution at Port of Tallinn
About 170 LED message boards across the Old City Harbour A and D terminals, integrated with Nortal's Smart Port system since 2016, automating vehicle guidance from weighbridge to ferry gate.
Read case study →
Port of Sillamäe · Estonia
Weight Station Displays at the Port of Sillamäe
High-brightness outdoor DR Series displays at the Port of Sillamäe grain weighing station — showing truck drivers their weight data and instructions from the cab.
Read case study →
Tallinn Airport · Estonia
Apron Information and Warning System at Tallinn Airport
Seven rugged LED message boards and central server software deployed on the Tallinn Airport apron — replacing a two-state lightbox with a full situational awareness system integrating NTP time and temperature from the airport's Vaisala weather system.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
