DR-1040x720 — Standard Outdoor LED Message Board
The DR-1040x720 is Ampron's most widely deployed outdoor LED message board. At 1040×720×50 mm with a 960×640 mm active display area and P8 pixel pitch, it covers the typical guidance display use case — truck routing instructions, gate codes, bay assignments, access codes and status messages at viewing distances from 8 metres. Weighing approx. 21 kg, it is single-person installable. Rated IP65 for outdoor locations. HTTP API allows the controlling system to push messages with no middleware — used in logistics platforms, port management systems and industrial automation.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Ports and logistics yards
- Airports and aprons
- Outdoor traffic guidance
- Industrial outdoor
Not ideal for
- Indoor installations
- Consumer or retail applications
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- Model
- DR-1040x720
- Pixel Pitch
- P8 standard (P4, P5 available)
- Resolution
- 120×80 pixels
- Brightness
- ≥6,000 cd/m²
- Display Area
- 960×640 mm
- Dimensions
- 1040×720×50 mm
- Front Panel
- Anti-glare acrylic (PMMA)
- Viewing Angle
- H:140° ±10° / V:130° ±10°
- Min Viewing Distance
- 8 metres
- Operating Temperature
- −40 °C to +60 °C
- IP Rating
- IP65
- Input Voltage
- 220–240 VAC, 50 Hz
- Power Avg
- 100 W
- Weight
- approx. 21 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN CAT 5/5e/6 + HTTP API
- Cables
- 3 m power cable, factory-fitted; IP67 waterproof RJ45 LAN socket
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
Annual operating cost (24/7)
Based on 100 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 960×640 mm active display area — standard guidance sign size for ports and logistics
- Available in P4, P5 and P8 pixel pitch — specify pitch to match your installation viewing distance
- ≥6,000 cd/m² brightness — daylight and night-time readable without adjustment
- IP65 enclosure — fully weatherproof for permanent outdoor installation
- Robust enclosure for vehicle-adjacent locations
- Approx. 21 kg — single-person installable on standard sign pole or wall bracket
- HTTP API — used by Waybiller, port management and logistics platforms
- Automatic brightness control — adjusts to ambient light conditions
- −40 °C to +60 °C — operational through Nordic winters without heating
- SKU: DR-1040x720 — available in P4, P5 and P8 pixel pitch

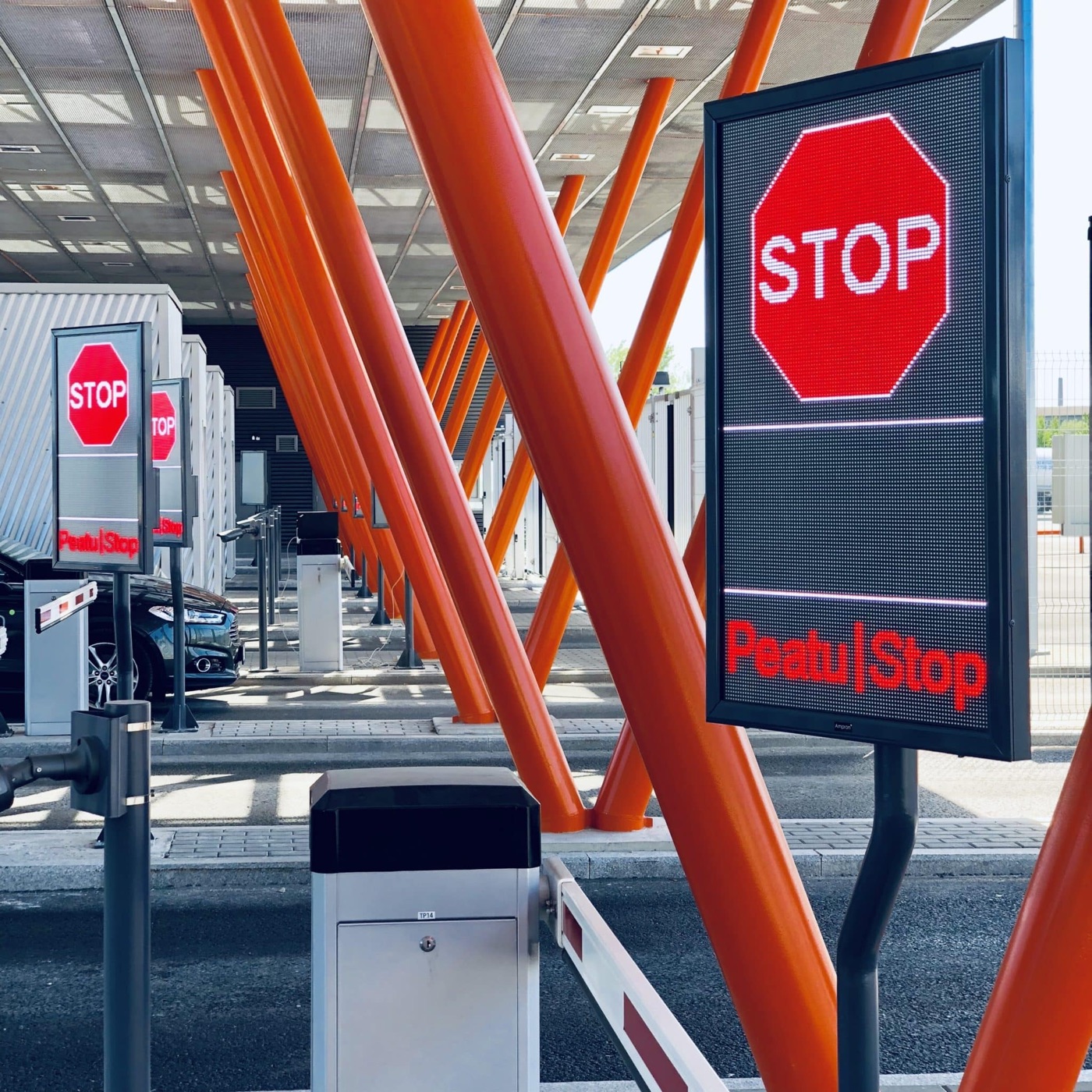

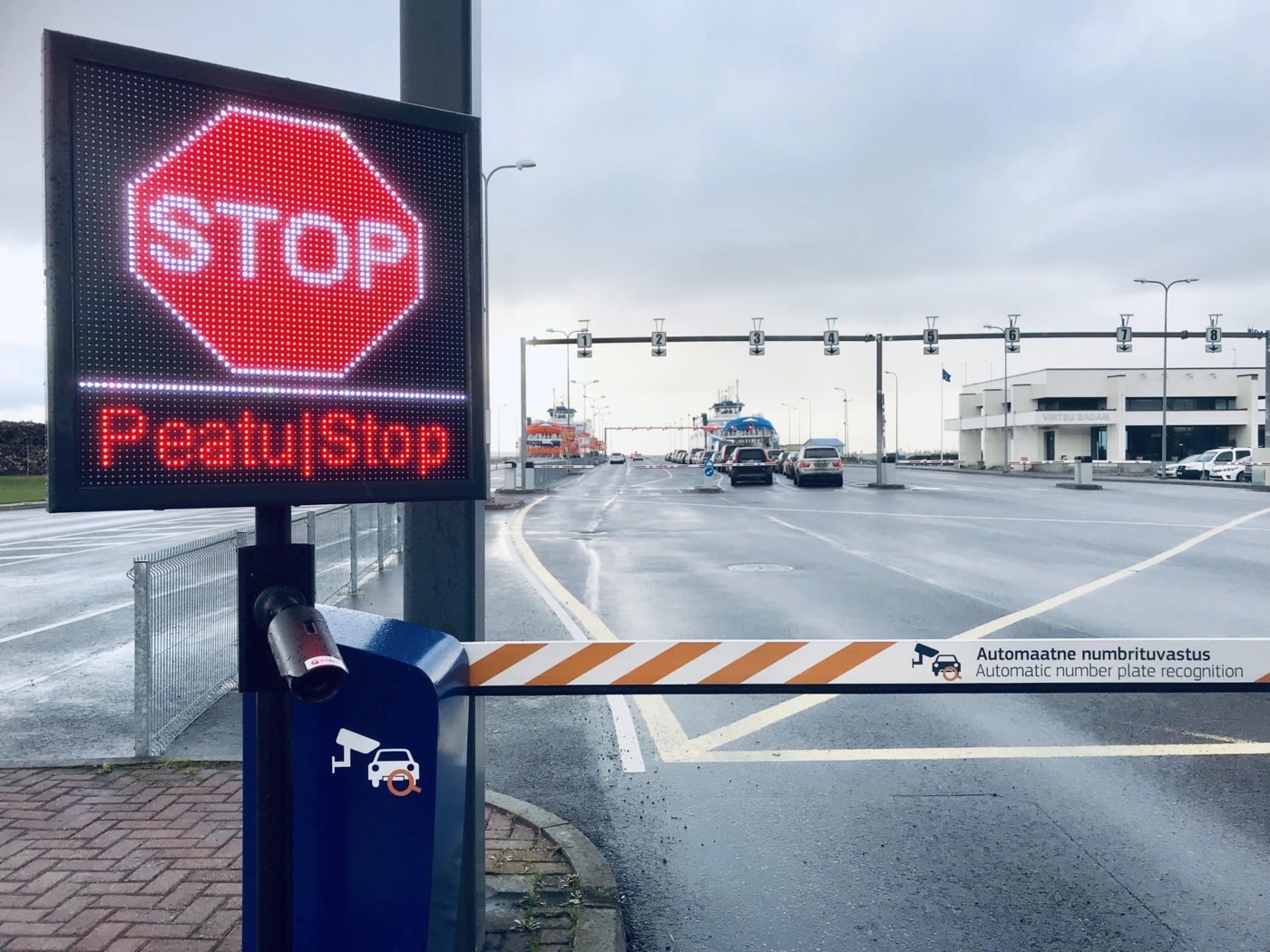

- Works beside lane barriers and automatic number plate recognition — shows STOP / "Peatu | Stop" at the barrier (Port of Tallinn)
Ask about this product
A specific question about specs, sizing or integration? We'll reply within two working days.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Live deployments
This product in the field

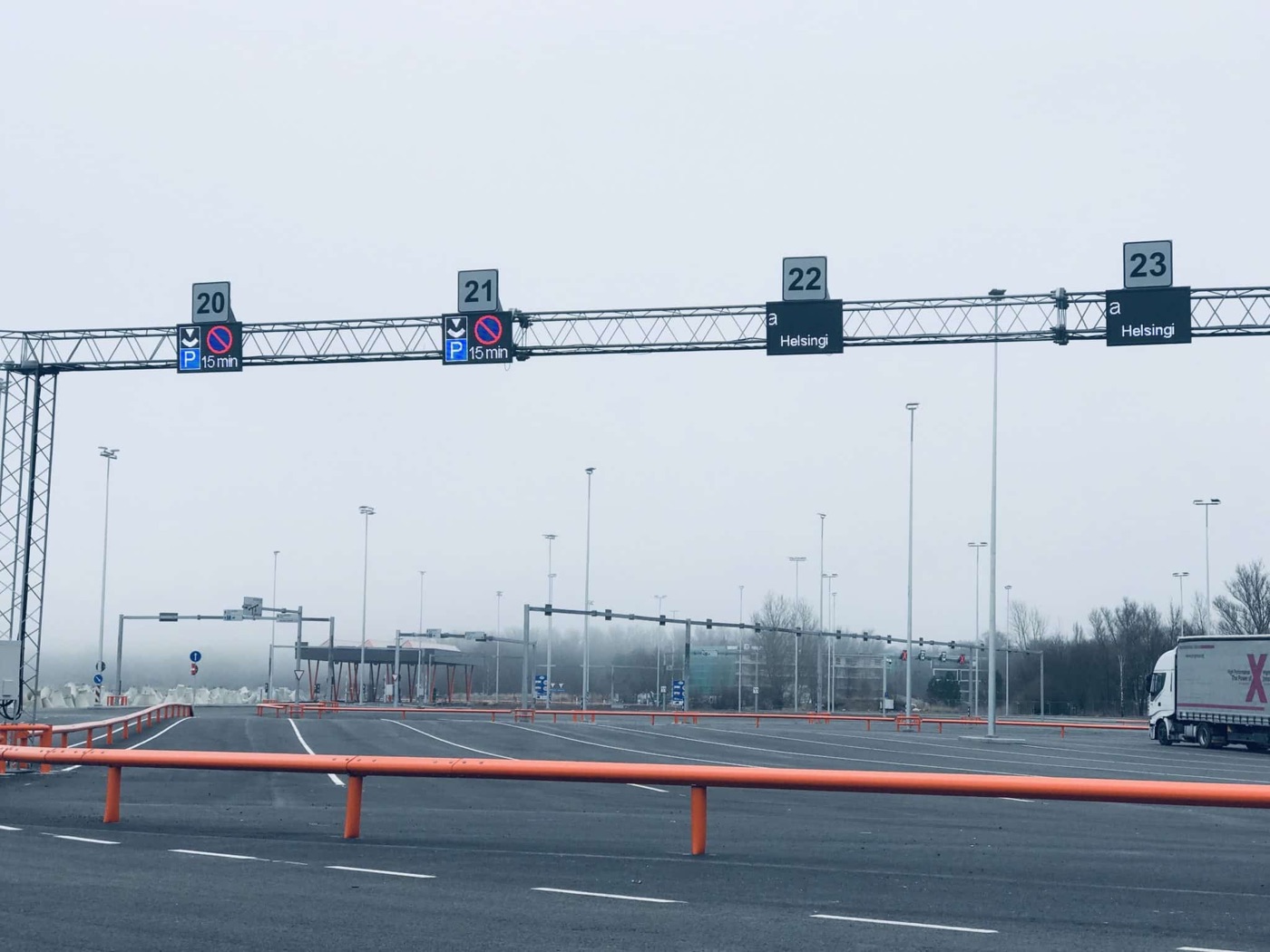

Port of Tallinn (AS Tallinna Sadam), originally delivered via Hansab AS · Estonia
LED Message Boards for the Smart Port Solution at Port of Tallinn
About 170 LED message boards across the Old City Harbour A and D terminals, integrated with Nortal's Smart Port system since 2016, automating vehicle guidance from weighbridge to ferry gate.
Read case study →
Sheet metal manufacturer · Estonia
Truck Loading and Unloading Management LED Display System
LED message boards installed outside a sheet metal factory showing truck drivers their loading/unloading time slot and gate number — controlled automatically from the facility's truck management software.
Read case study →
Port of Sillamäe · Estonia
Weight Station Displays at the Port of Sillamäe
High-brightness outdoor DR Series displays at the Port of Sillamäe truck weighbridges, showing drivers their weighing data and instructions from the cab.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
