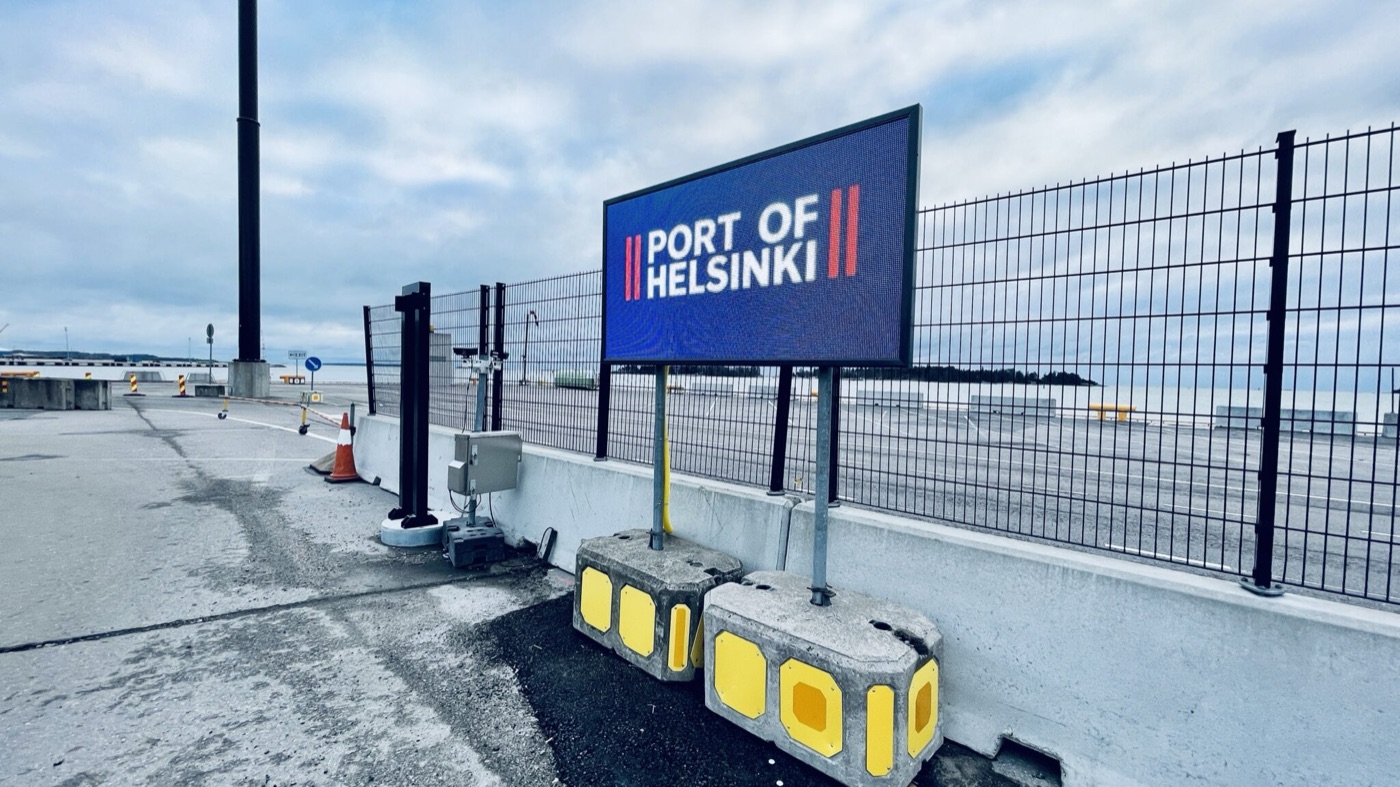

DR-2000x1040 — Large-Format Outdoor LED Message Board
The DR-2000x1040 delivers a 1920×960 mm full-colour LED active area in a weatherproof 2000×1040×50 mm enclosure. P8 pixel pitch is optimised for viewing distances from 8 metres and beyond — typical of main port gates, industrial entry points and wide-span road signs. The unit runs 24/7 from 220–240 VAC mains, averages 300 W and is rated IP65 for all-weather installations. HTTP API control integrates directly with logistics, traffic management and OPC/SCADA systems.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Ports and logistics yards
- Airports and aprons
- Outdoor traffic guidance
- Industrial outdoor
Not ideal for
- Indoor installations
- Consumer or retail applications
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- Model
- DR-2000x1040
- Pixel Pitch
- P8 standard (P4, P5 available)
- Resolution
- 240×120 pixels
- Brightness
- ≥6,000 cd/m²
- Display Area
- 1920×960 mm
- Dimensions
- 2000×1040×50 mm
- Front Panel
- Anti-glare acrylic (PMMA)
- Viewing Angle
- H:140° ±10° / V:130° ±10°
- Min Viewing Distance
- 8 metres
- Operating Temperature
- −40 °C to +60 °C
- IP Rating
- IP65
- Input Voltage
- 220–240 VAC, 50 Hz
- Power Avg
- 300 W
- Weight
- 100 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN CAT 5/5e/6 + HTTP API
- Cables
- Power cable, factory-fitted; IP67 waterproof RJ45 LAN connector
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
Annual operating cost (24/7)
Based on 300 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 1920×960 mm active display area — visible at distances up to 100+ metres
- Available in P4, P5 and P8 pixel pitch — specify pitch to match your installation viewing distance
- ≥6,000 cd/m² brightness — readable in full sunlight and winter darkness
- IP65 enclosure, protected against dust, rain, snow and water jets
- HTTP API — integrates directly with logistics, TMS and SCADA backends
- 24/7 continuous operation — designed for unattended infrastructure use
- −40 °C to +60 °C operating range — arctic-to-tropical climate suitability
- Custom pixel pitch and enclosure on request
Ask about this product
A specific question about specs, sizing or integration? We'll reply within two working days.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications

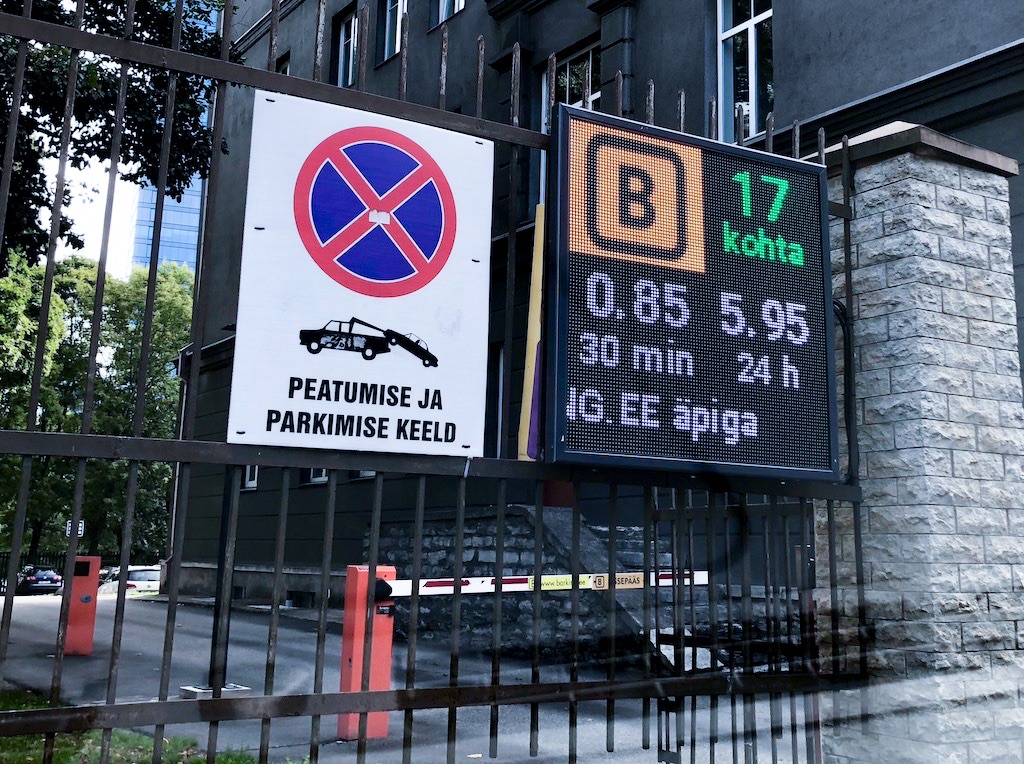

Model range
Other sizes in this series
Live deployments
This product in the field

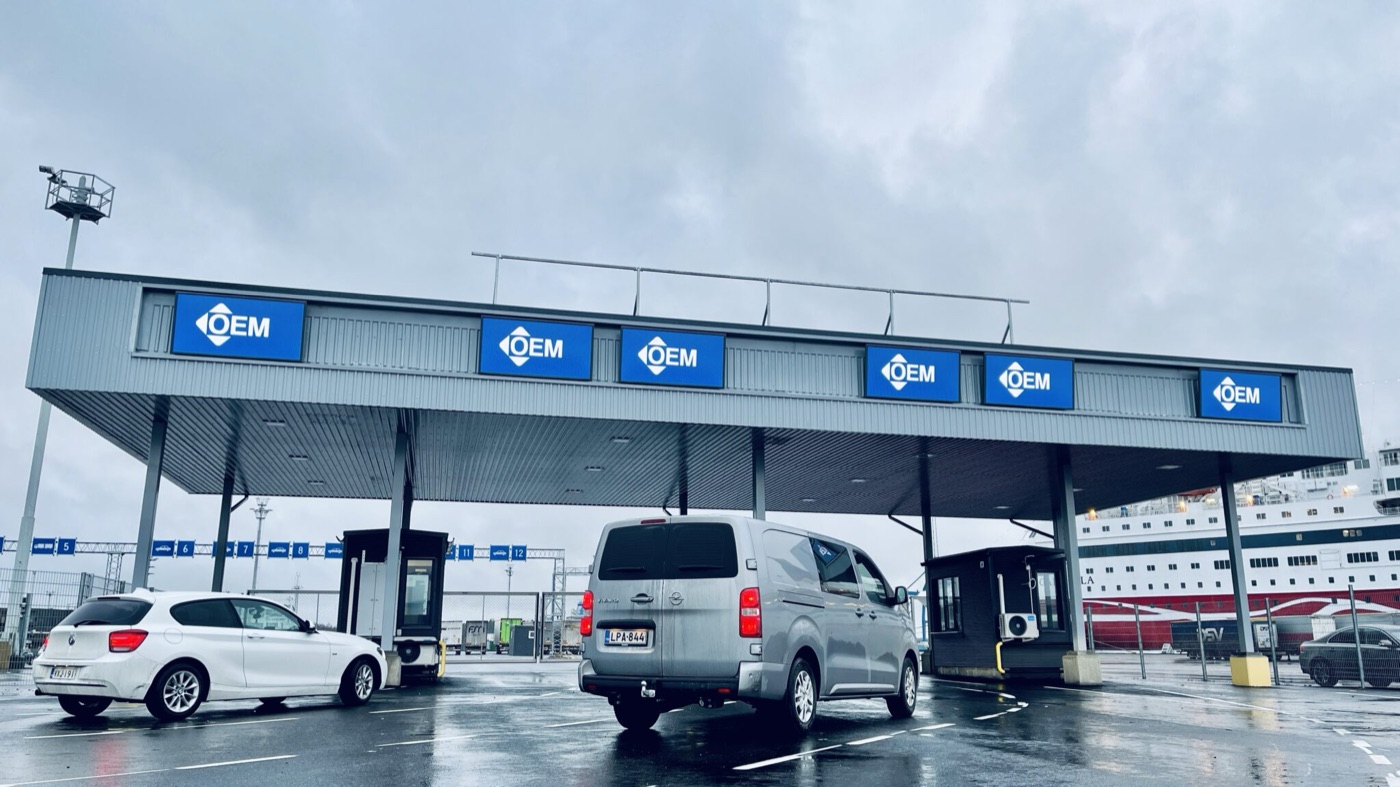

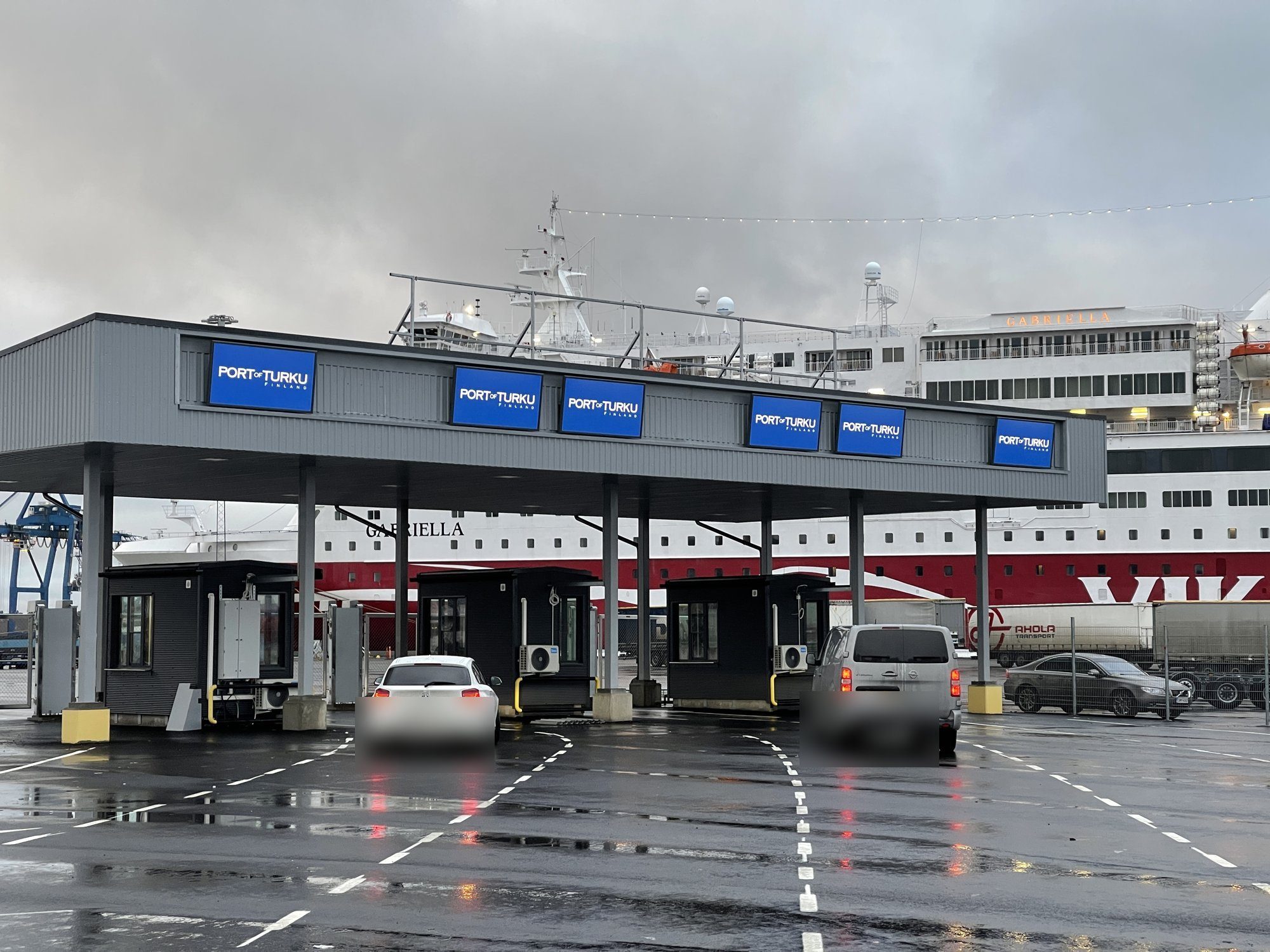

Port of Turku / OEM Finland Oy · Finland
LED Guidance Displays for Tallink Silja Passengers at Port of Turku
DR-2000×1040 rugged outdoor LED guidance displays delivered to Port of Turku — guiding Tallink Silja ferry passengers and truck drivers through the last mile to the ferry gate.
Read case study →
Sheet metal manufacturer · Estonia
Truck Loading and Unloading Management LED Display System
LED message boards installed outside a sheet metal factory showing truck drivers their loading/unloading time slot and gate number — controlled automatically from the facility's truck management software.
Read case study →

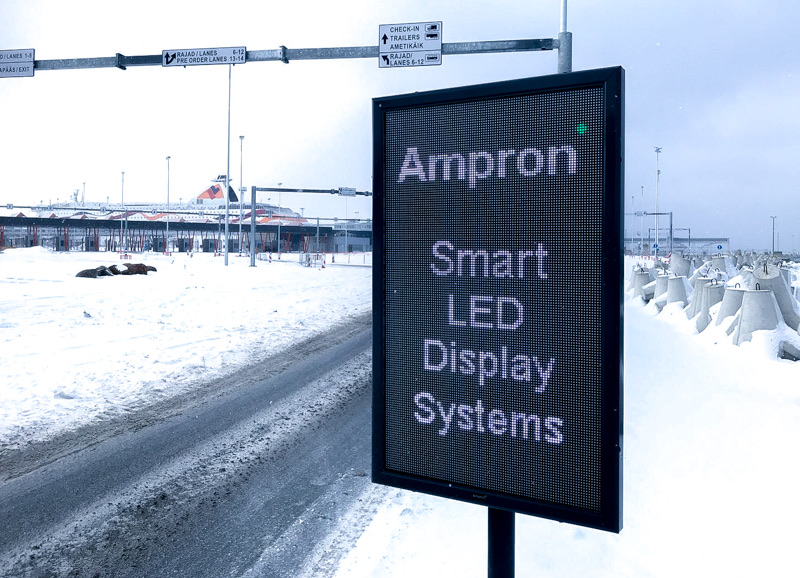

Port of Sillamäe · Estonia
Weight Station Displays at the Port of Sillamäe
High-brightness outdoor DR Series displays at the Port of Sillamäe truck weighbridges, showing drivers their weighing data and instructions from the cab.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
