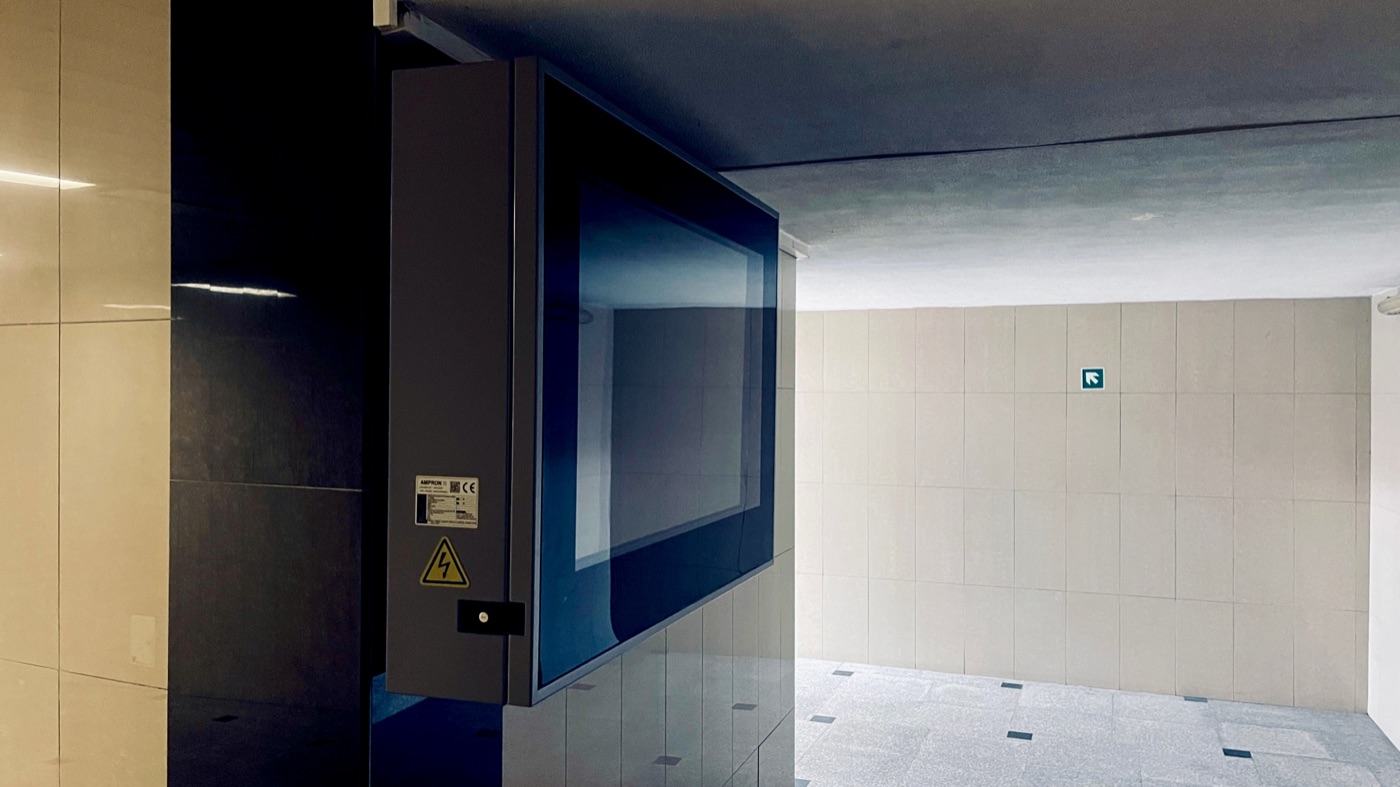

YT-S49W — Outdoor 49" Single-Sided LCD Display
The YT-S49W is a 49-inch outdoor LCD display designed for external platform and trackside passenger information boards. At 2500 nits, it is fully readable in direct sunlight. IP65 enclosure handles rain, dust and UV exposure; IK08-rated for vandal resistance. Holds an EMC test certificate to EN 50121-4 (BST Testing, 2022) for railway environments. Operates from −40 °C to +55 °C in a heated cabinet for four-season Nordic rail operation.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Railway platforms and stations
- Rail trackside environments
- Transit passenger information
Not ideal for
- Non-railway environments
- Exposed outdoor without shelter
Lead time
On request
EXW Tallinn · Lead time is confirmed with each offer.
Integration
Connects to the systems you already run
Technical specifications
- Model
- YT-S49W
- LCD Panel
- LG 49" LED backlight, FullHD 1920×1080
- Brightness
- 2500 nits
- Contrast Ratio
- min. 5000:1
- Viewing Angle
- 178° × 178°
- Response Time
- 6 ms
- Operating Temperature
- −40 °C to +55 °C
- Cold Start
- Heated cabinet; after a cold start below about −5 °C the screen switches on once the cabinet has warmed
- IP Rating
- IP65
- Impact Protection
- IK08
- Network
- Ethernet, Wi-Fi, 4G
- Interface
- AmpronLED CMS + REST HTTP
- Power
- 240 V AC, 352 W typical
- Case
- 1.2 mm galvanized plate, powder coated
- Front Panel
- Tempered glass AR OptiView laminate
- Operation
- 24/7
Annual operating cost (24/7)
Based on 352 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- EMC-tested to EN 50121-4 (BST Testing, 2022) — trackside use
- 2500 nit brightness — fully readable in direct outdoor daylight
- IP65-rated enclosure — sealed against rain, dust and UV exposure
- IK08 impact protection — vandal and weather resistant
- −40 °C to +55 °C operating range (heated cabinet) — full Nordic four-season operation
- AmpronLED content management via Ethernet, Wi-Fi or 4G
- Burglar alarm and UPS options available
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Railway LCD

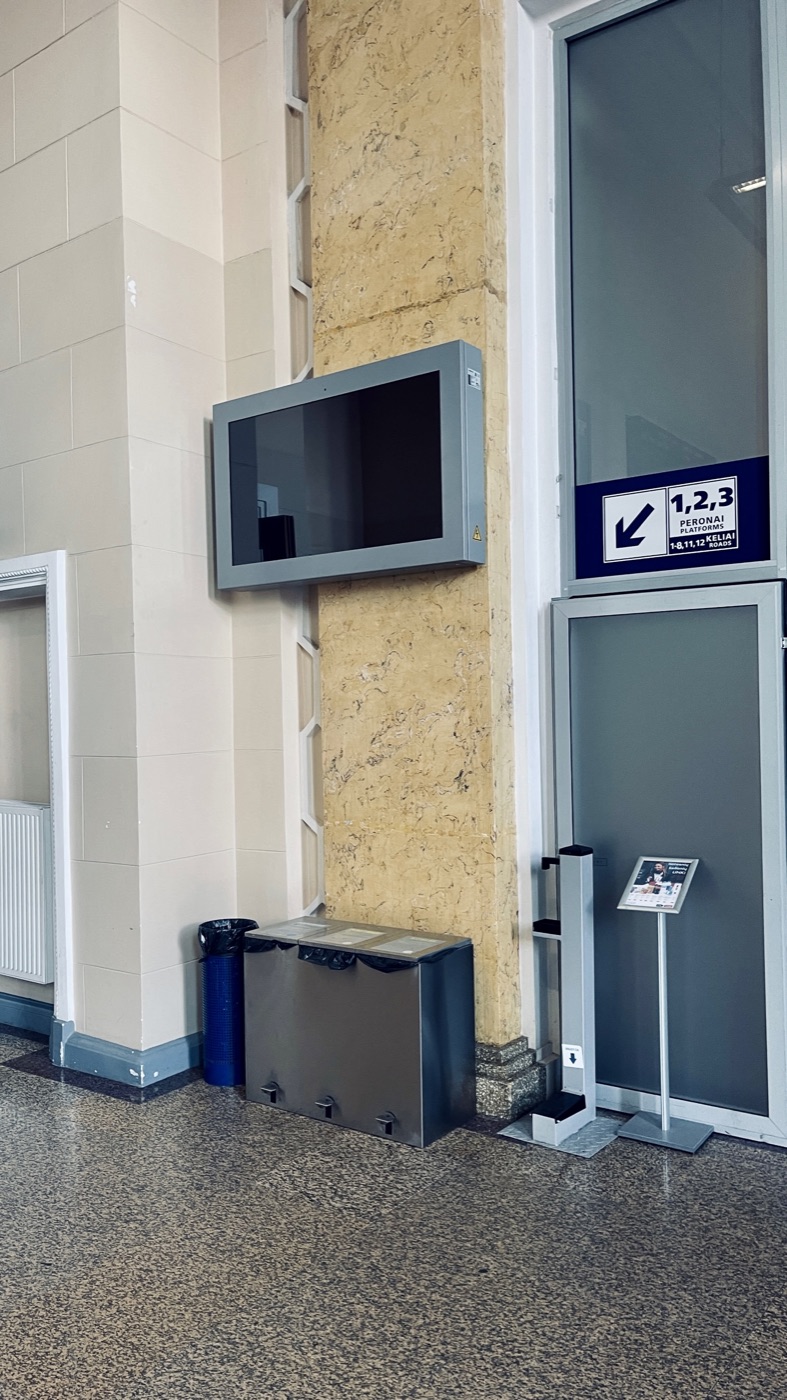

YT-S55W Indoor 55"
55-inch indoor LCD for platform concourses, waiting rooms and transit terminals.
Railway LCD

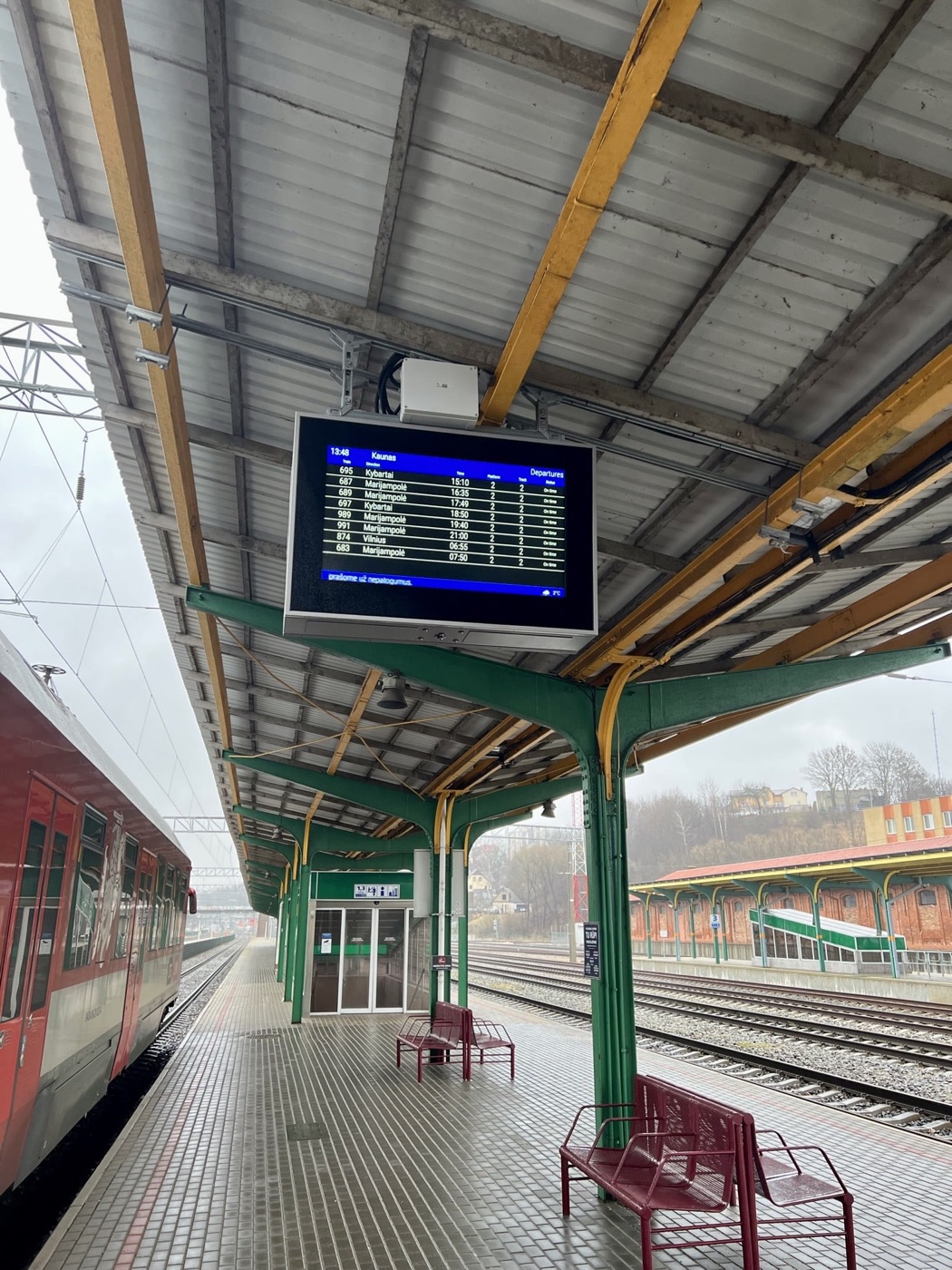

YT-S55T Outdoor Vertical 55"
55-inch vertical outdoor LCD totem for wayfinding and platform passenger information.
Railway LCD

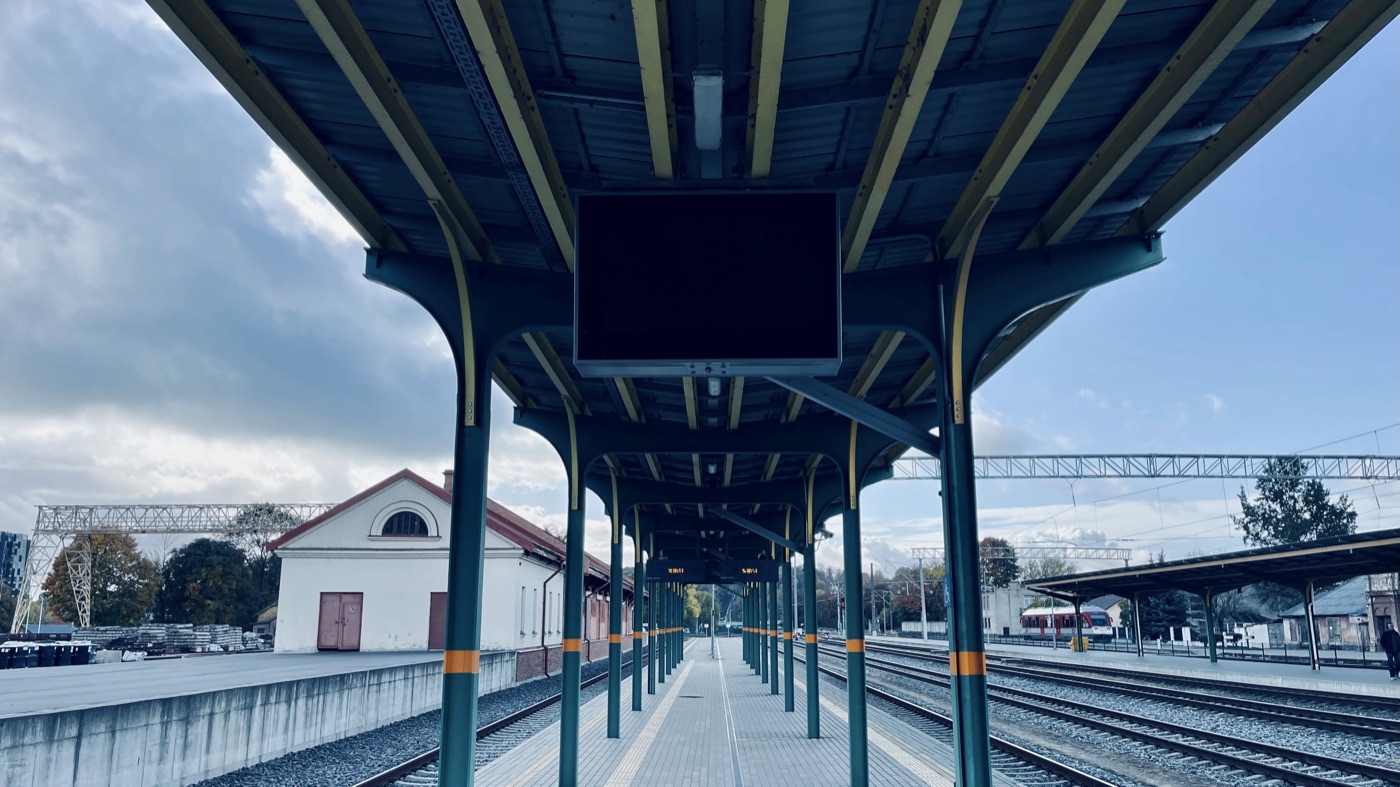

YT Dual-Sided 49"
Dual-sided 49-inch outdoor LCD — visible from both platform sides for pole and overhead mounting.
Railway LCD

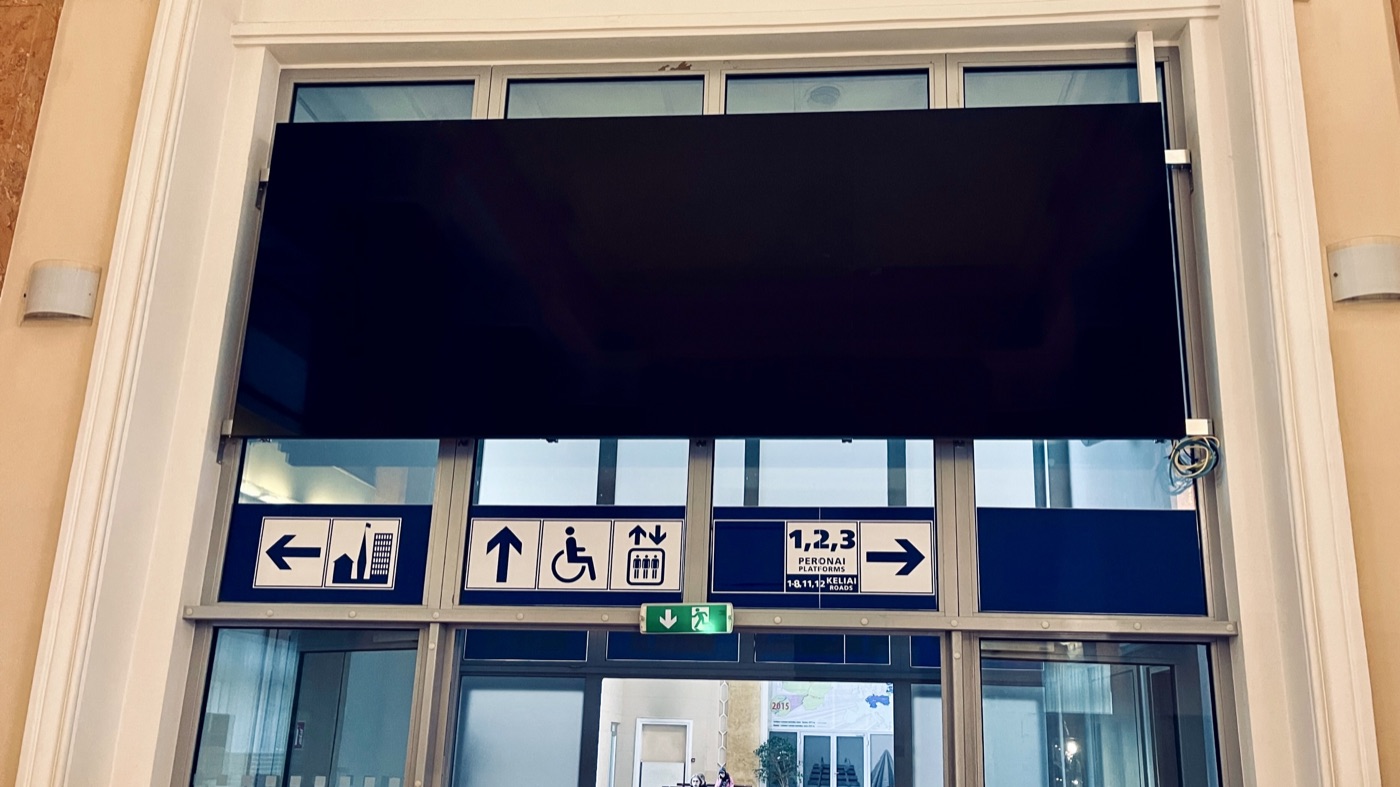

LCD Video Wall 1.6 mm
Multi-panel LCD video wall with 1.6 mm bezel gap for control rooms and operations centres.
Live deployments
This product in the field
Specify this product for your project.
Contact us with installation location, display distance and required integration.
