Railway LCD
YT-S55W — Indoor 55" LCD Display for Transit Terminals
The YT-S55W is a 55-inch indoor LCD display built for passenger information in mass transit terminals. It uses an LG 55" panel at 700 cd/m² brightness — well-matched to covered concourse and waiting room environments. IP54 and IK08 rated, certified to EN 50121-4 for electromagnetic compatibility near rail infrastructure. AmpronLED content management with Ethernet, Wi-Fi and 4G network options.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Railway platforms and stations
- Rail trackside environments
- Transit passenger information
Not ideal for
- Non-railway environments
- Exposed outdoor without shelter
Lead time
4–6 weeks
EXW Tallinn · from order confirmation
Integration
Connects to the systems you already run
Technical specifications
- Model
- YT-S55W
- LCD Panel
- LG 55" LED backlight, FullHD 1920×1080
- Brightness
- 700 cd/m²
- Contrast Ratio
- min. 5000:1
- Viewing Angle
- 178° × 178°
- Response Time
- 6 ms
- Display Area
- 1210 × 681 mm
- Overall Size
- 1300 × 775 × 65 mm
- Operating Temperature
- +10 °C to +40 °C
- IP Rating
- IP54
- Impact Protection
- IK08
- Network
- Ethernet, Wi-Fi, 4G
- Interface
- AmpronLED CMS + REST HTTP
- Power
- 240 V AC, 180 W typical
- Operation
- 24/7
Annual operating cost (24/7)
Based on 180 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- EN 50121-4 certified — electromagnetic compatibility for railway platform environments
- 55-inch LG FullHD panel — sharp and readable across concourse widths
- IP54-rated enclosure — suitable for covered platform environments
- IK08 impact protection — tamper and vandal resistant
- AmpronLED content management via Ethernet, Wi-Fi or 4G
- Tempered glass front panel — 3 mm AR OptiView laminate
- VESA mounting and custom bracket options available
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Railway LCD
YT-S49W Outdoor 49"
49-inch weatherproof outdoor LCD for platform and trackside passenger information.
Railway LCD
YT-S55T Outdoor Vertical 55"
55-inch vertical outdoor LCD totem for wayfinding and platform passenger information.
Railway LCD
YT Dual-Sided 49"
Dual-sided 49-inch outdoor LCD — visible from both platform sides for pole and overhead mounting.
Railway LCD
LCD Video Wall 1.6 mm
Multi-panel LCD video wall with 1.6 mm bezel gap for control rooms and operations centres.
Live deployments
This product in the field
Estonian Railway (AS Eesti Raudtee) · Estonia
32 Dual-Sided Narrow Outdoor LCD Displays for the Estonian National Rail Network
32 dual-sided narrow outdoor LCD passenger information displays deployed across the Estonian national rail network — EN 50121-4 certified, delivered under two public procurement tenders, with a long-term service agreement covering the full fleet.
Read case study →
Lithuanian Railways (LTG Infra), delivered as subcontractor to the main contractor · Lithuania

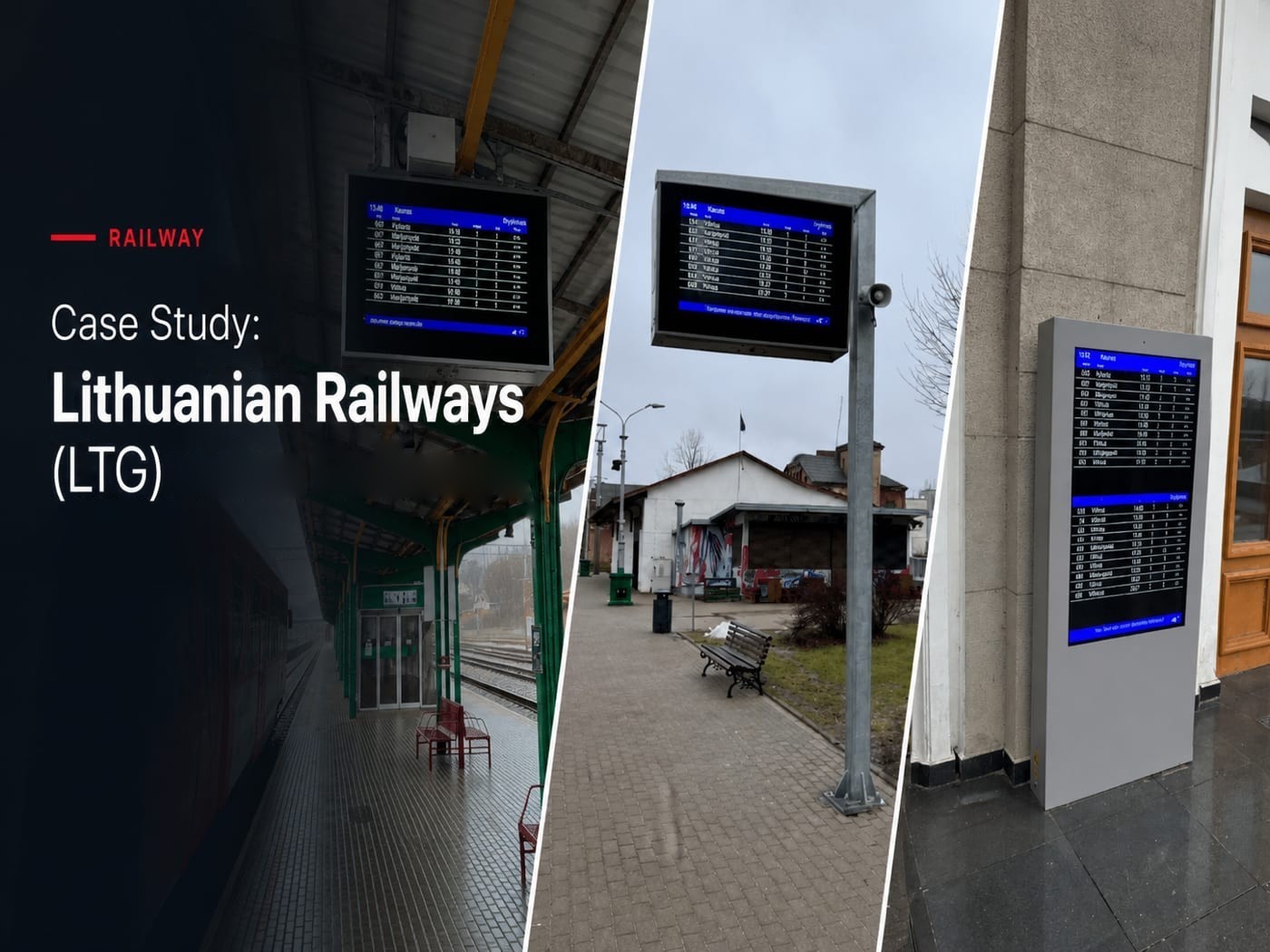

Railway LCD Passenger Displays for Lithuanian Railways
Over 200 LCD passenger information displays delivered to Lithuanian Railways — covering outdoor platforms, underground passages, indoor concourses and control room video walls across the national network.
Read case study →Deployed at 2 sites in 2 countries.
Specify this product for your project.
Contact us with installation location, display distance and required integration.
