YT Dual-Sided 49" — Outdoor Platform Passenger Display
The YT Dual-Sided 49" display carries two 49-inch LG LCD panels back-to-back in a single weatherproof enclosure — one display visible from each side of the platform. IP65 and IK08 rated; the YT-S49F holds an EMC test certificate to EN 50121-4 (BST Testing, 2022). Pole and overhead mounting configurations are available. At 2500 nits, both screens are fully readable in direct outdoor daylight. Designed for narrow-platform rail stations where a single display pole needs to serve passengers on both sides.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Railway platforms and stations
- Rail trackside environments
- Transit passenger information
Not ideal for
- Non-railway environments
- Exposed outdoor without shelter
Lead time
On request
EXW Tallinn · Lead time is confirmed with each offer.
Integration
Connects to the systems you already run
Technical specifications
- Model
- YT-S49W Dual-Sided
- LCD Panels
- 2 × LG 49" LED backlight, FullHD 1920×1080
- Brightness
- 2500 nits
- Contrast Ratio
- min. 5000:1
- Viewing Angle
- 178° × 178°
- Response Time
- 6 ms
- Configuration
- Back-to-back dual display, single pole enclosure
- Operating Temperature
- −30 °C to +60 °C
- IP Rating
- IP65
- Impact Protection
- IK08
- Network
- Ethernet, Wi-Fi, 4G
- Interface
- AmpronLED CMS + REST HTTP
- Power
- 240 V AC, 352 W typical (max 650 W)
- Case
- 1.2 mm galvanized plate, powder coated
- Operation
- 24/7
Annual operating cost (24/7)
Based on 352 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- EMC-tested to EN 50121-4 (BST Testing, 2022) — railway trackside use
- Dual-sided enclosure — both platform sides served from a single pole installation
- 2500 nit brightness — both screens fully readable in direct outdoor daylight
- IP65 and IK08 rated — weatherproof and vandal-resistant enclosure

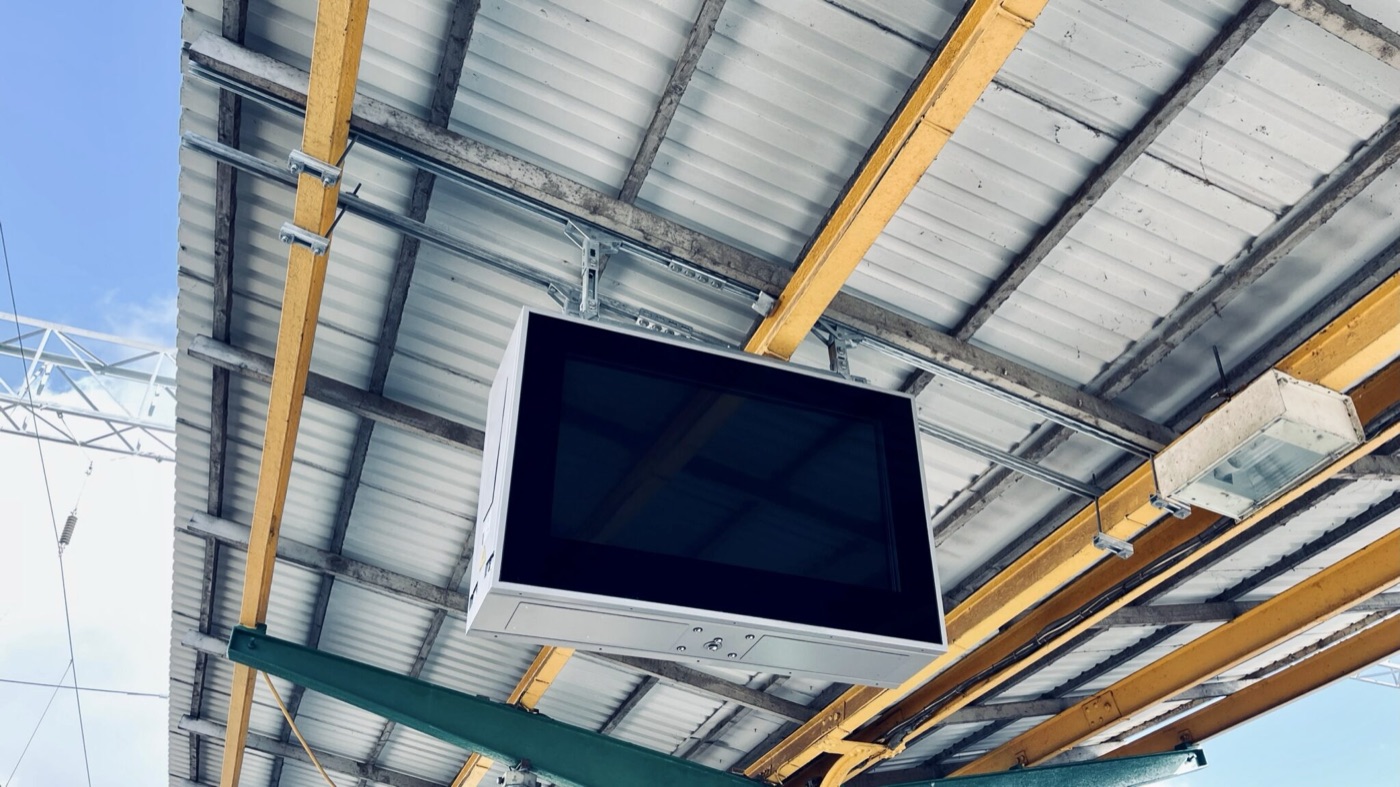

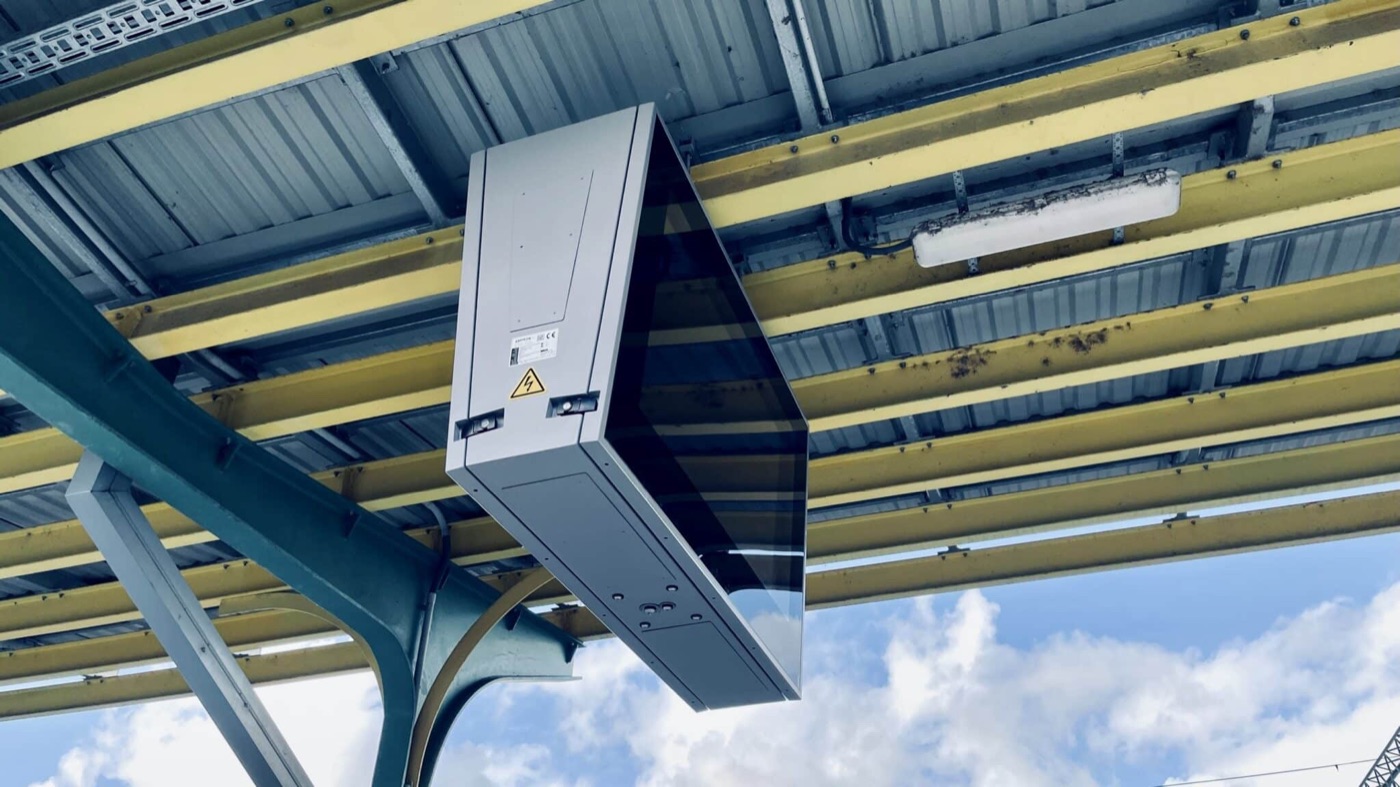

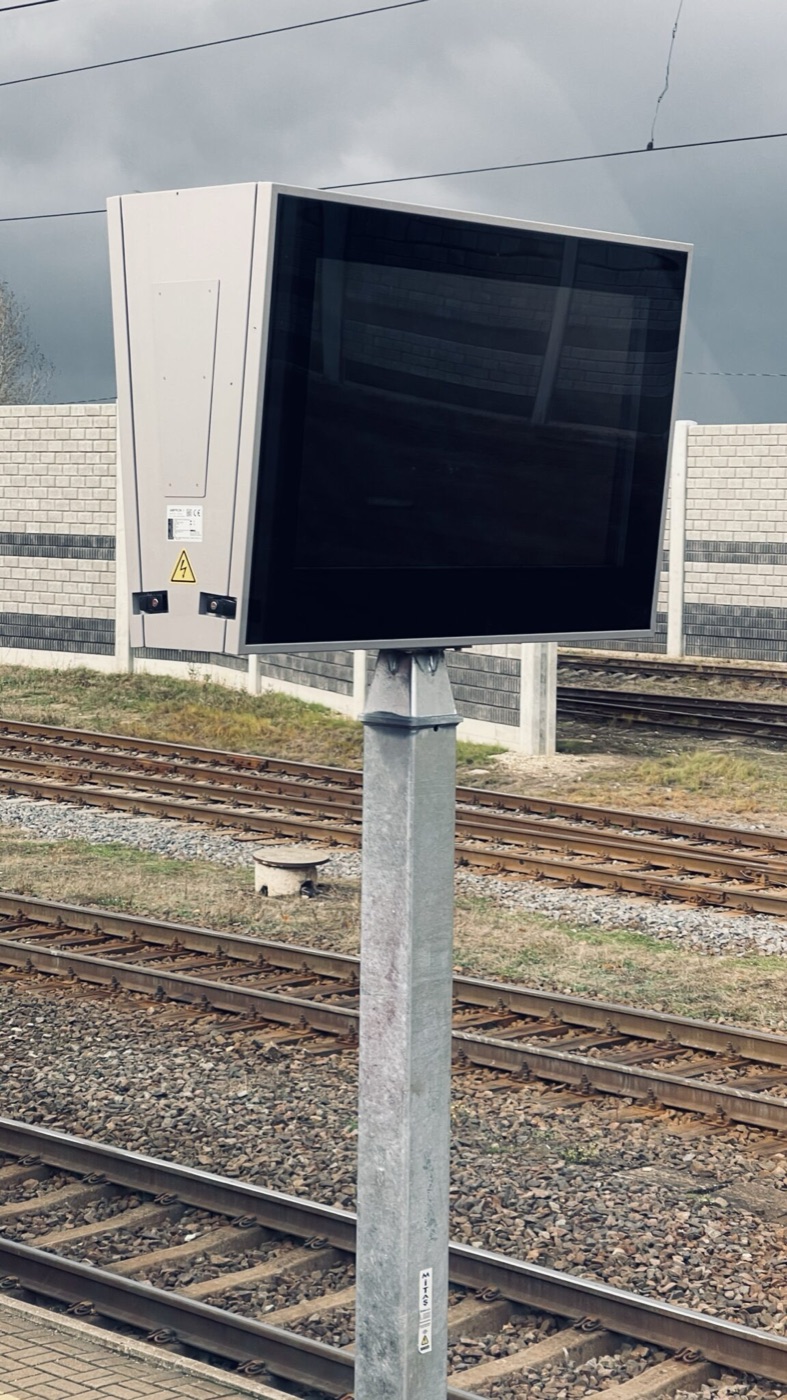

- Pole and overhead mounting configurations
- −30 °C to +60 °C operating range — full Nordic four-season operation
- Custom design available — pole dimensions and mounting on request
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Railway LCD
YT-S55W Indoor 55"
55-inch indoor LCD for platform concourses, waiting rooms and transit terminals.
Railway LCD
YT-S49W Outdoor 49"
49-inch weatherproof outdoor LCD for platform and trackside passenger information.
Railway LCD
YT-S55T Outdoor Vertical 55"
55-inch vertical outdoor LCD totem for wayfinding and platform passenger information.
Railway LCD
LCD Video Wall 1.6 mm
Multi-panel LCD video wall with 1.6 mm bezel gap for control rooms and operations centres.
Live deployments
This product in the field
Edelaraudtee AS · Estonia
Passenger Information Displays for the Central Estonian Rail Network
Ampron supplied 28 outdoor LCD passenger information screens to 24 stops on the Tallinn-Väike–Viljandi line: 21 dual-sided 49" and 7 single-sided 55" totems, all driven by AmpronLED and showing Elron's live timetable feed.
Read case study →
Estonian Railway (AS Eesti Raudtee) · Estonia
32 Dual-Sided Narrow Outdoor LCD Displays for the Estonian National Rail Network
32 dual-sided narrow outdoor LCD passenger information displays deployed across the Estonian national rail network, delivered under two public procurement tenders, with a long-term service agreement covering the full fleet.
Read case study →
Lithuanian Railways (LTG Infra), delivered as subcontractor to the main contractor · Lithuania
Railway LCD Passenger Displays for Lithuanian Railways
Over 200 LCD passenger information displays delivered to Lithuanian Railways — covering outdoor platforms, underground passages, indoor concourses and control room video walls across the national network.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
