DS-320x160 — Single-Line Compact LED Display

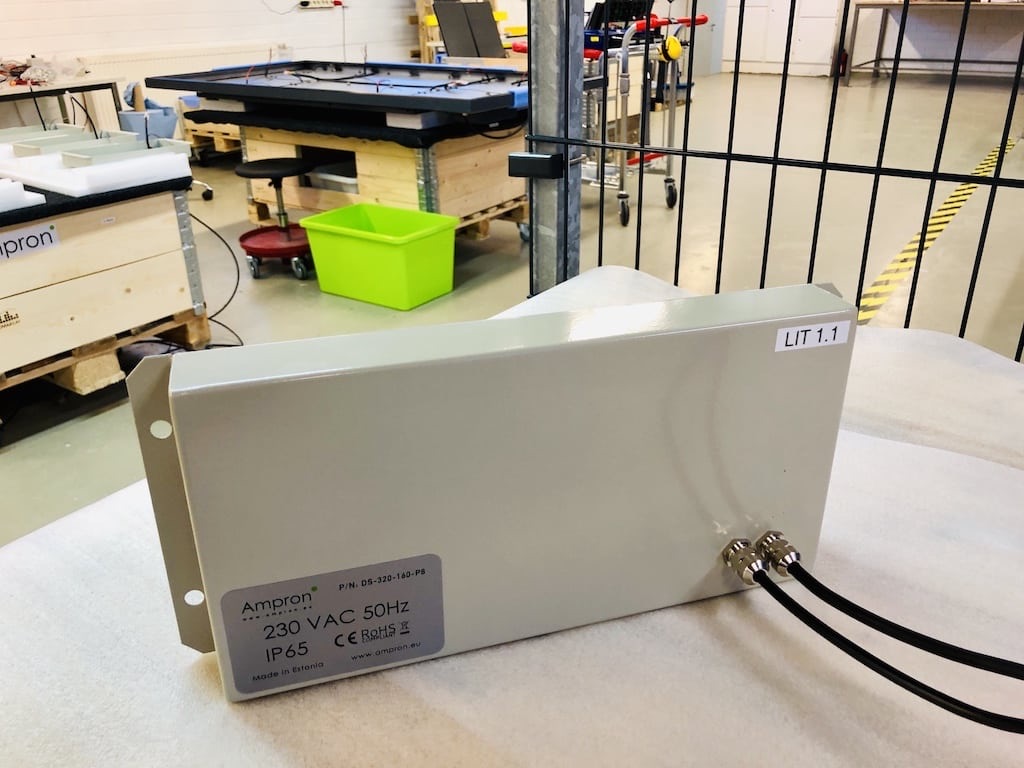

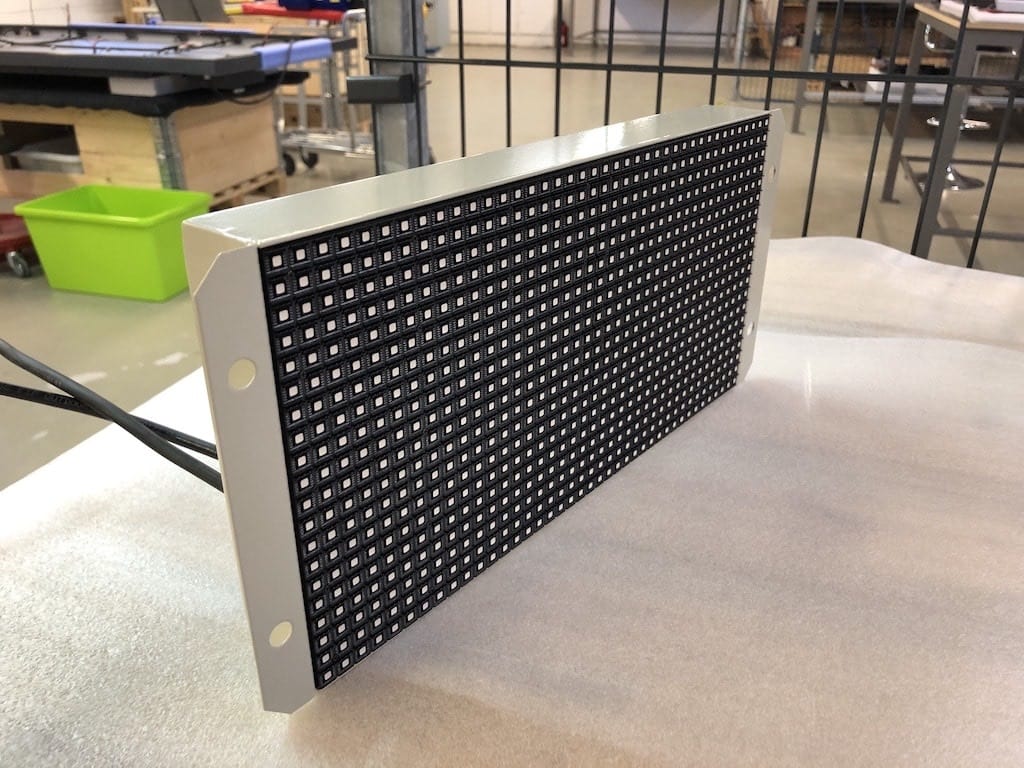

The DS-320x160 provides a 280×120 mm active area in a 320×160×50 mm IP65 enclosure. At 2 kg and 15 W average consumption, it is the lightest and most energy-efficient model in the DS range — ideal for dense installations where dozens of units must be powered and managed from a single controller. REST HTTP API is identical across the full DS Series: a system integrating the DS-320x160 today can add any other DS model later without code changes. Suitable for outdoor, semi-outdoor and indoor use.
Best for
- Compact multi-zone installations
- Bus stops and transit
- Indoor/outdoor status boards
- Production floor displays
Not ideal for
- Large-format outdoor advertising
- Single large-screen setups
Lead time
4–6 weeks
EXW Tallinn · from order confirmation
Integration
Connects to the systems you already run
Technical specifications
Specifications shown for P8 pixel pitch variant. P4 and P5 available on request.
- Model
- DS-320x160
- Pixel Pitch
- P8 standard (P4, P5 available)
- Resolution
- 40×20 pixels
- Brightness
- >6500 nits
- Dimensions
- 320×160×50 mm
- IP Rating
- IP65
- Operating Temperature
- −35 °C to +50 °C
- Input Voltage
- 240 V AC
- Power Avg
- 15 W
- Weight
- 2 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN + REST HTTP
- Operation
- 24/7
- Certification
- CE, RoHS
Annual operating cost (24/7)
Based on 15 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 280×120 mm active area — readable single-line text and icons from 3 metres
- Available in P4, P5 and P8 pixel pitch — specify pitch for your installation distance
- 2 kg — single-person install on standard sign bracket or wall mount
- 15 W average consumption — economical for large-quantity deployments
- IP65 sealed enclosure — suitable for outdoor, covered and indoor locations
- REST HTTP API identical across all DS Series models — no per-model integration differences
- −35 °C to +50 °C operating range — no additional heater or cooling required
- Vertical orientation available on request
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Compact LED
DS-640x160
Wide single-line format for aisle headers, direction arrows and zone labels.
Compact LED
DS-320x320
Square compact format for directional signs, lift lobbies and access control displays.
Compact LED
DS-640x320
The most widely deployed DS model — two-line text and graphic guidance.
Compact LED
DS-960x320
Wide two-zone compact board for split-message control and queue management.
Compact LED
DS-960x640
Largest DS format — multi-line departure boards, warehouse status and gate displays.
Live deployments
This product in the field
Waybiller · Estonia
Real-Time Traffic Guidance at the Port of Kunda
Waybiller integrated Ampron's compact outdoor LED display at the Port of Kunda weighbridge — showing live weight, vehicle number and unloading instructions to truck drivers in real time.
Read case study →
Sheet metal manufacturer · Estonia
Truck Loading and Unloading Management LED Display System
LED message boards installed outside a sheet metal factory showing truck drivers their loading/unloading time slot and gate number — controlled automatically from the facility's truck management software.
Read case study →
Public transport operator · Estonia
Real-Time Bus Arrival API Integration into LED Message Boards
REST API integration connecting Ridango's transit management system to Ampron LED displays at bus stops — delivering real-time arrival data automatically.
Read case study →Deployed at 3 sites since Infinity.
Specify this product for your project.
Contact us with installation location, display distance and required integration.
