DS-960x320 — Wide Compact LED Display
The DS-960x320 is the widest single-height model in the DS Series. Its 960×320 mm display area can be split into two independent zones via the REST API — allowing two separate messages, status indicators or countdowns to be displayed and updated independently from a single unit. This makes it particularly effective for queue management systems, split parking bay indicators and entrance gate displays where two pieces of information need to appear side by side. IP65 enclosure. 10 kg. REST HTTP API.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Compact multi-zone installations
- Bus stops and transit
- Indoor/outdoor status boards
- Production floor displays
Not ideal for
- Large-format outdoor advertising
- Single large-screen setups
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- Model
- DS-960x320
- Pixel Pitch
- P8 standard (P4, P5 available)
- Resolution
- 120×40 pixels
- Brightness
- ≥4,500 cd/m²
- Viewing Angle
- H:140° ±10° / V:130° ±10°
- Display Area
- 960×320 mm
- Dimensions
- 963×323×54 mm
- IP Rating
- IP65
- Operating Temperature
- −40 °C to +60 °C
- Input Voltage
- 230–240 VAC, 50 Hz
- Power Avg
- 30 W
- Weight
- approx. 10 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN + REST HTTP
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
Annual operating cost (24/7)
Based on 30 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 960×320 mm wide display area — two independently controlled display zones via REST API
- Available in P4, P5 and P8 pixel pitch — specify pitch for your installation distance

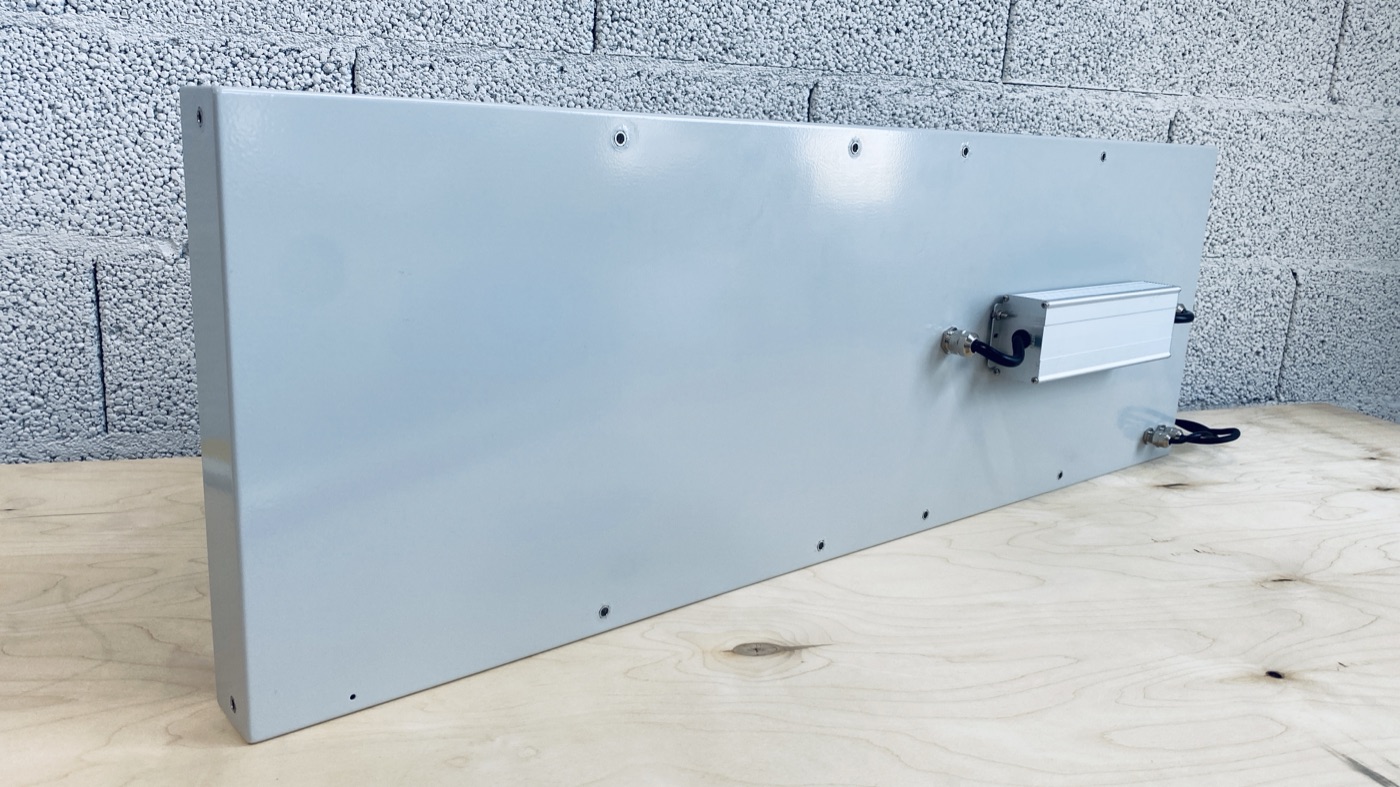

- Approx. 10 kg — wall or overhead mount; two-person installation recommended
- Efficient power consumption at full width
- IP65 sealed enclosure — outdoor and indoor use
- Split-zone control — two separate messages updated independently from the same unit
- REST HTTP API identical across all DS Series models

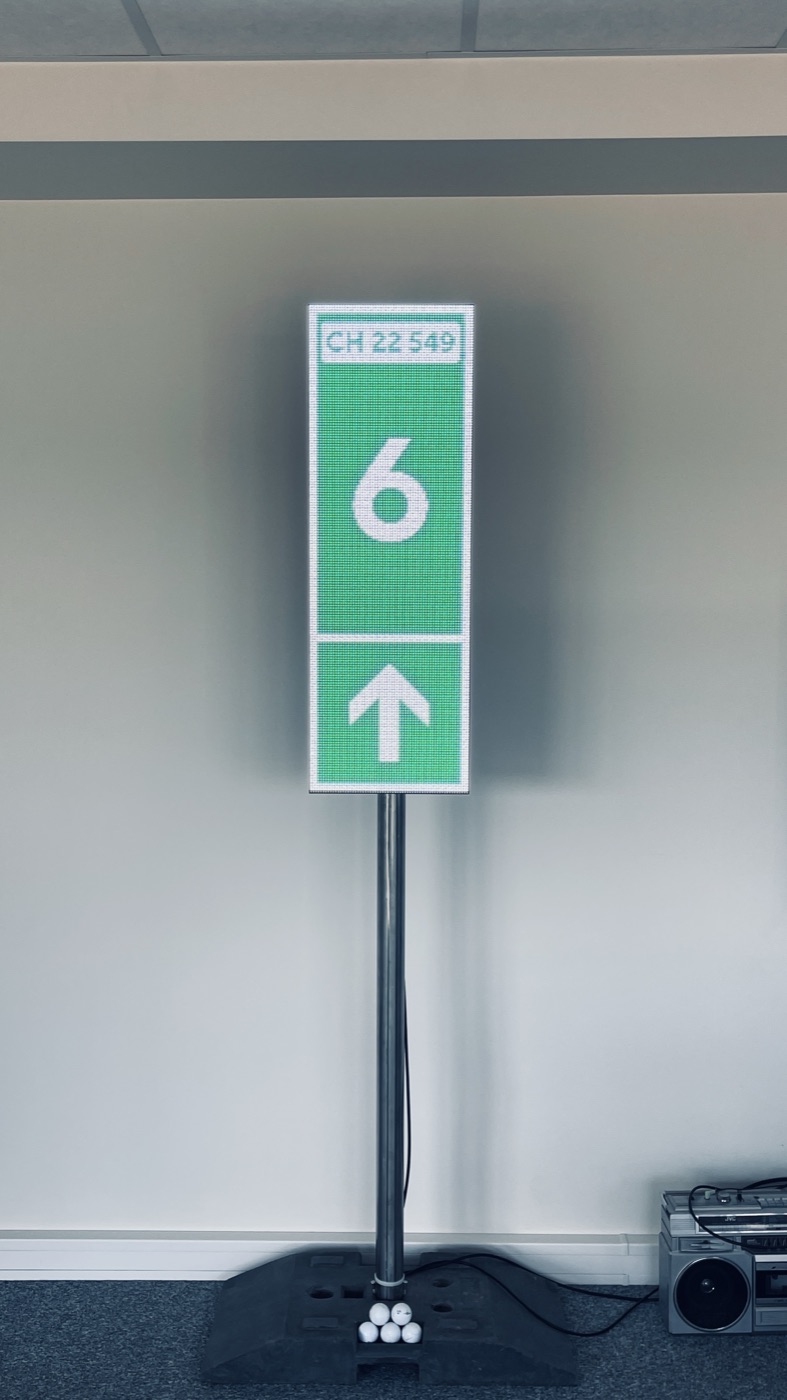

- Horizontal orientation standard; vertical on request
Optional matte anti-glare front cover: a bent polymer cover that fits over the display face for extra protection in ports, dusty sites or wherever stones and debris fly. Made to size for any DS model. Ask your sales contact.
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Compact LED
DS-320x160
Smallest DS format — parking bay indicators, entry status and single-line guidance.
Compact LED
DS-640x160
Wide single-line format for aisle headers, direction arrows and zone labels.
Compact LED
DS-320x320
Square compact format for directional signs, lift lobbies and access control displays.
Compact LED
DS-640x320
The most widely deployed DS model — two-line text and graphic guidance.
Compact LED
DS-960x640
Largest DS format — multi-line departure boards, warehouse status and gate displays.
Live deployments
This product in the field
Waybiller · Estonia
Real-Time Traffic Guidance at the Port of Kunda
Waybiller integrated Ampron's compact outdoor LED display at the Port of Kunda weighbridge — showing live weight, vehicle number and unloading instructions to truck drivers in real time.
Read case study →
Sheet metal manufacturer · Estonia
Truck Loading and Unloading Management LED Display System
LED message boards installed outside a sheet metal factory showing truck drivers their loading/unloading time slot and gate number — controlled automatically from the facility's truck management software.
Read case study →
Port of Tallinn (AS Tallinna Sadam), originally delivered via Hansab AS · Estonia
LED Message Boards for the Smart Port Solution at Port of Tallinn
About 170 LED message boards across the Old City Harbour A and D terminals, integrated with Nortal's Smart Port system since 2016, automating vehicle guidance from weighbridge to ferry gate.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
