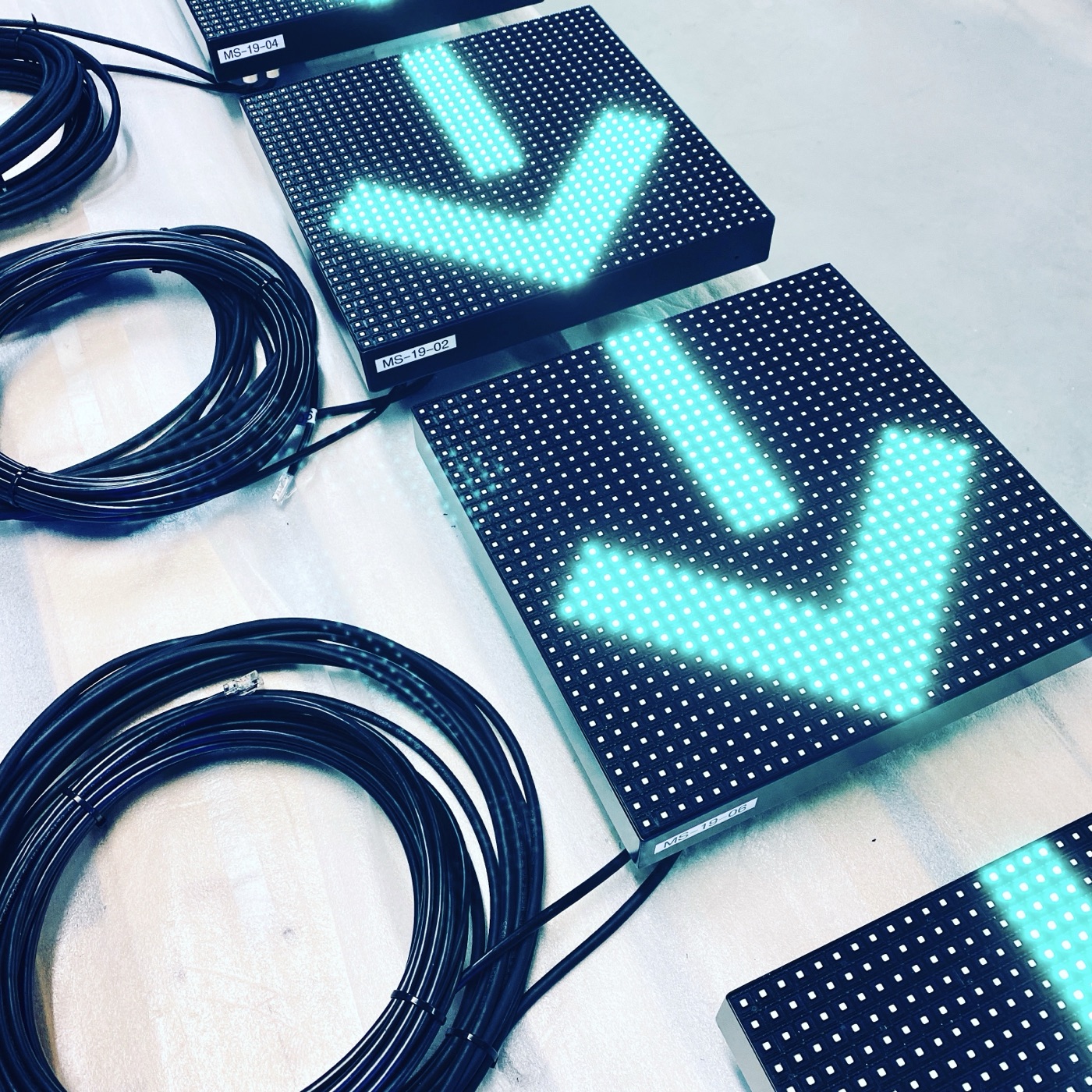

DS-320x320 — Square Compact LED Display
The DS-320x320 uses a square format — 320×320 mm display area — which is well proportioned for displaying a large icon alongside a short text label, or for access status indicators where the visual needs equal horizontal and vertical weight. At about 3 kg and 20 W average it is one of the lightest and most economical units in the DS range. IP65 enclosure. REST HTTP API. Used in parking guidance systems, lift lobby floor indicators, entry control displays and indoor wayfinding installations.
Not sure if this is the right product for you?
Try the Figurator. Eight questions, two minutes, no technical jargon. We'll recommend the best fit.
Best for
- Compact multi-zone installations
- Bus stops and transit
- Indoor/outdoor status boards
- Production floor displays
Not ideal for
- Large-format outdoor advertising
- Single large-screen setups
Lead time
4–6 weeks from payment
EXW Tallinn
Integration
Connects to the systems you already run
Technical specifications
- Model
- DS-320x320
- Pixel Pitch
- P5 standard, P4 and P8 available
- Resolution
- 64×64 pixels
- Brightness
- ≥5,000 cd/m²
- Viewing Angle
- H:140° / V:120°
- Display Area
- 320×320 mm
- Dimensions
- 323×323×54 mm
- IP Rating
- IP65
- Operating Temperature
- −40 °C to +60 °C
- Input Voltage
- 230–240 VAC, 50 Hz
- Power Avg
- 20 W
- Weight
- approx. 3 kg
- Colour
- Full colour, 16 bit/colour
- Interface
- LAN + REST HTTP
- Operation
- 24/7
- Conformity
- CE (manufacturer's EU Declaration of Conformity) · RoHS compliant
Annual operating cost (24/7)
Based on 20 W typical power draw. Edit the tariff to match your contract — the math updates live. Actual consumption varies with content brightness.
Features
- 320×320 mm square display area — icon-plus-text layout in equal proportions
- Available in P4, P5 and P8 pixel pitch — specify pitch for your installation distance
- Approx. 3 kg — mounts on standard wall bracket or ceiling arm
- 20 W average consumption — economical for dense installations
- IP65 sealed enclosure — outdoor and indoor use
- Full-colour LED — status colours (red/green/amber) and pictograms
- REST HTTP API identical across all DS Series models
- Vertical and horizontal mounting — same enclosure, rotatable

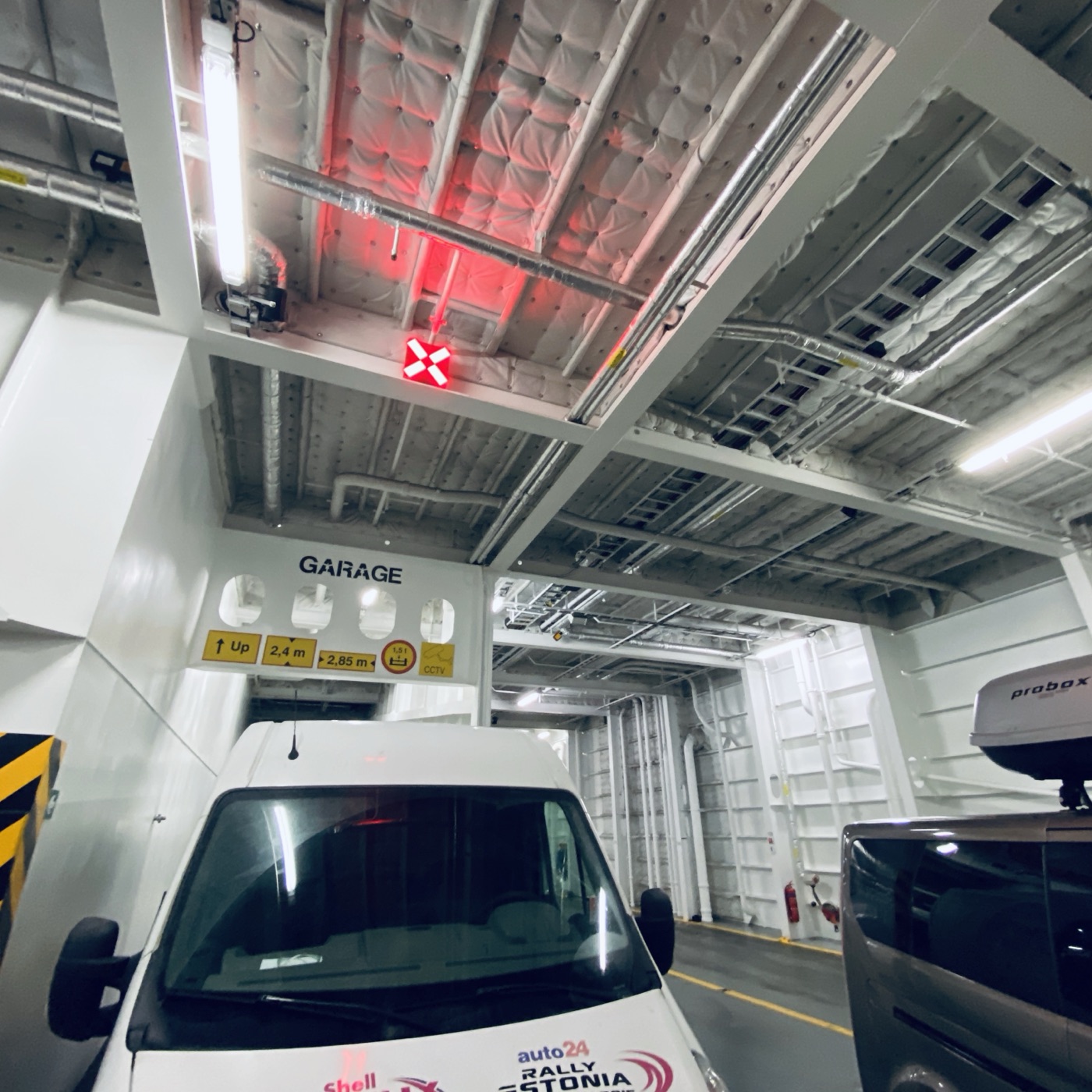

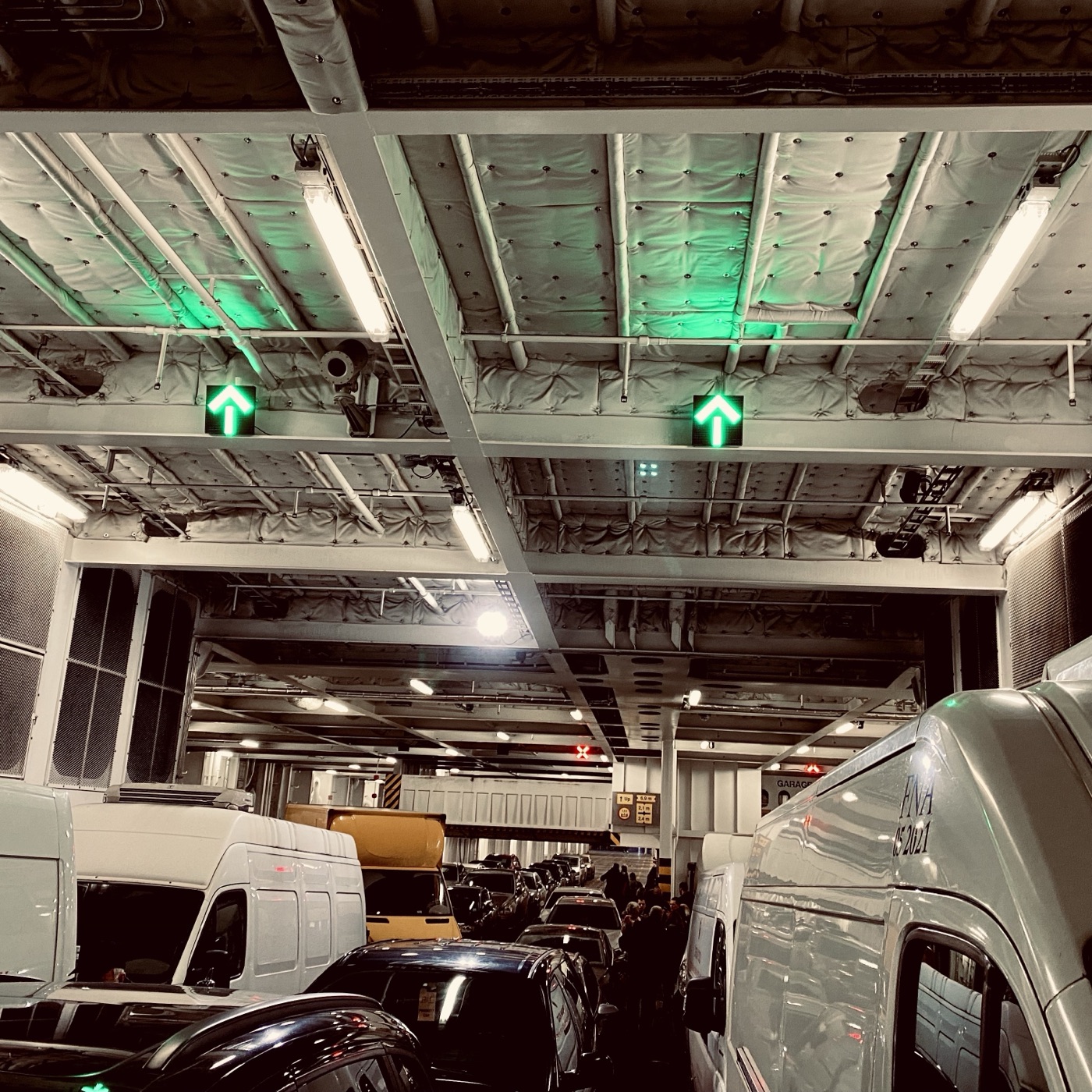

- Lane-control signals — red X / green arrow above vehicle lanes on a ferry car deck
Optional matte anti-glare front cover: a bent polymer cover that fits over the display face for extra protection in ports, dusty sites or wherever stones and debris fly. Made to size for any DS model. Ask your sales contact.
Ask about this product
A specific question about specs, sizing or integration? We'll reply within 24 hours.
Integrator network
Need someone to install it and connect it to your systems?
Most Ampron deployments are delivered by partner integrators across Europe — they handle on-site installation, system integration with your existing infrastructure, and long-term support. Tell us your location and project type and we'll connect you with the right team.
Applications
Model range
Other sizes in this series
Compact LED

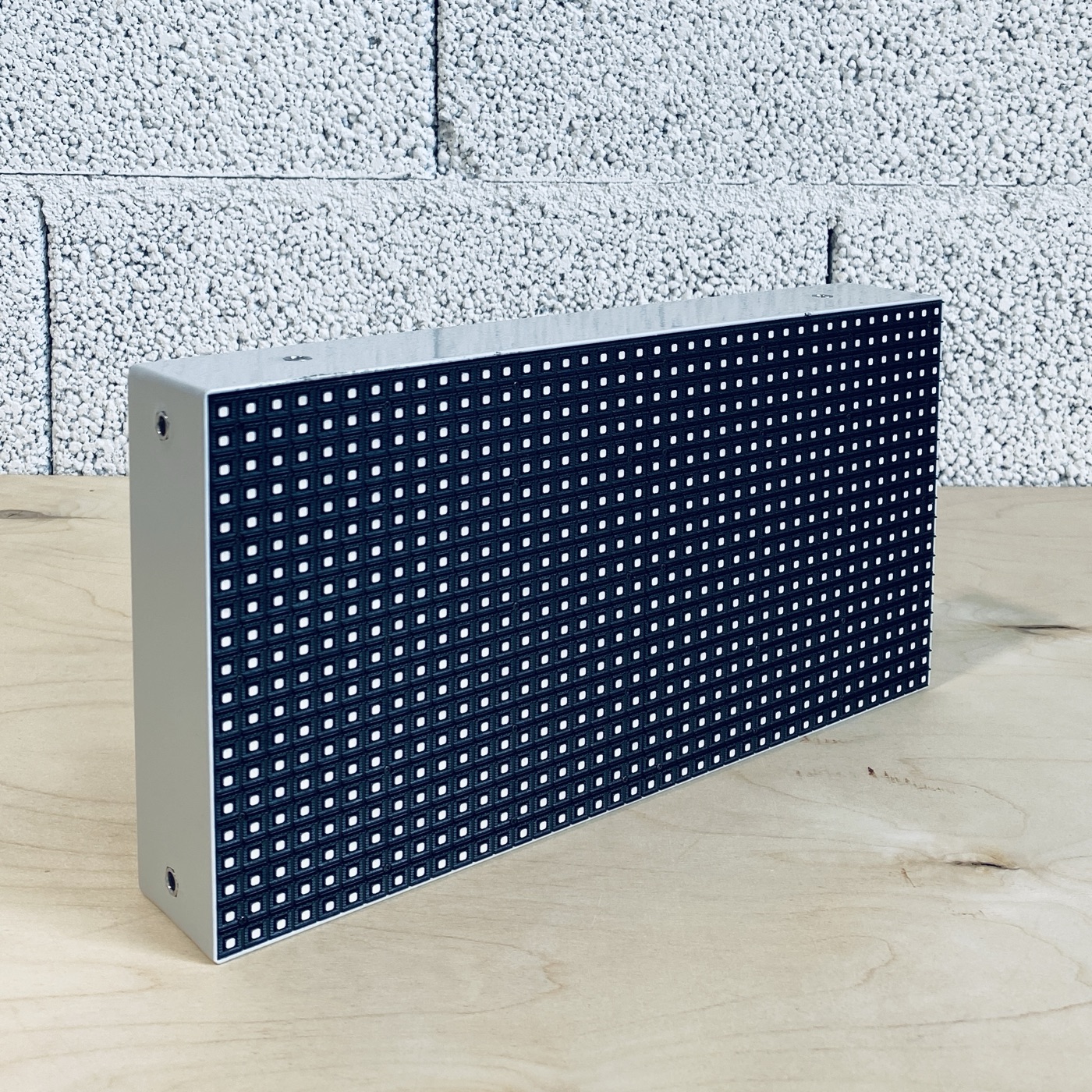

DS-320x160
Smallest DS format — parking bay indicators, entry status and single-line guidance.
Compact LED

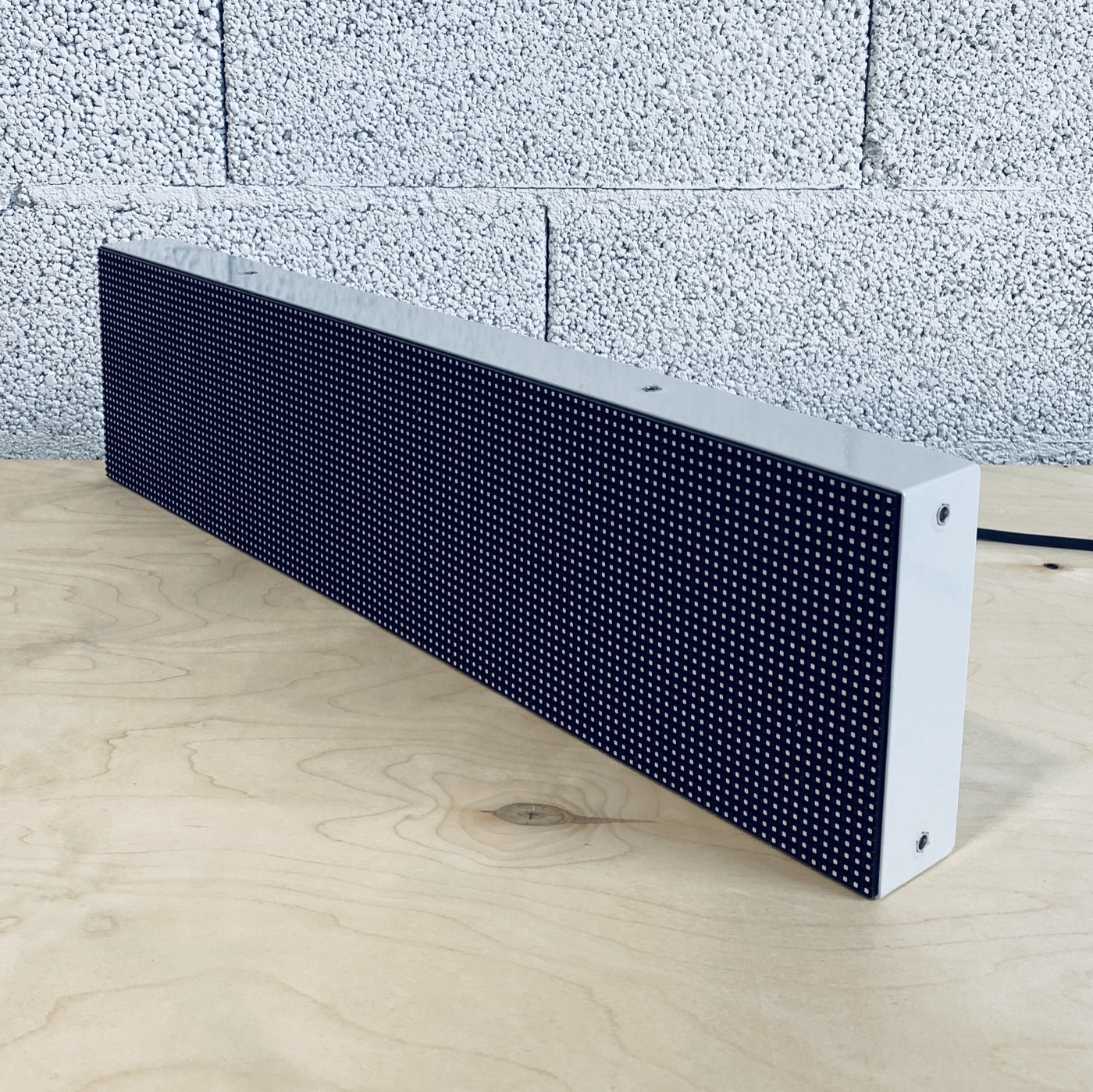

DS-640x160
Wide single-line format for aisle headers, direction arrows and zone labels.
Compact LED

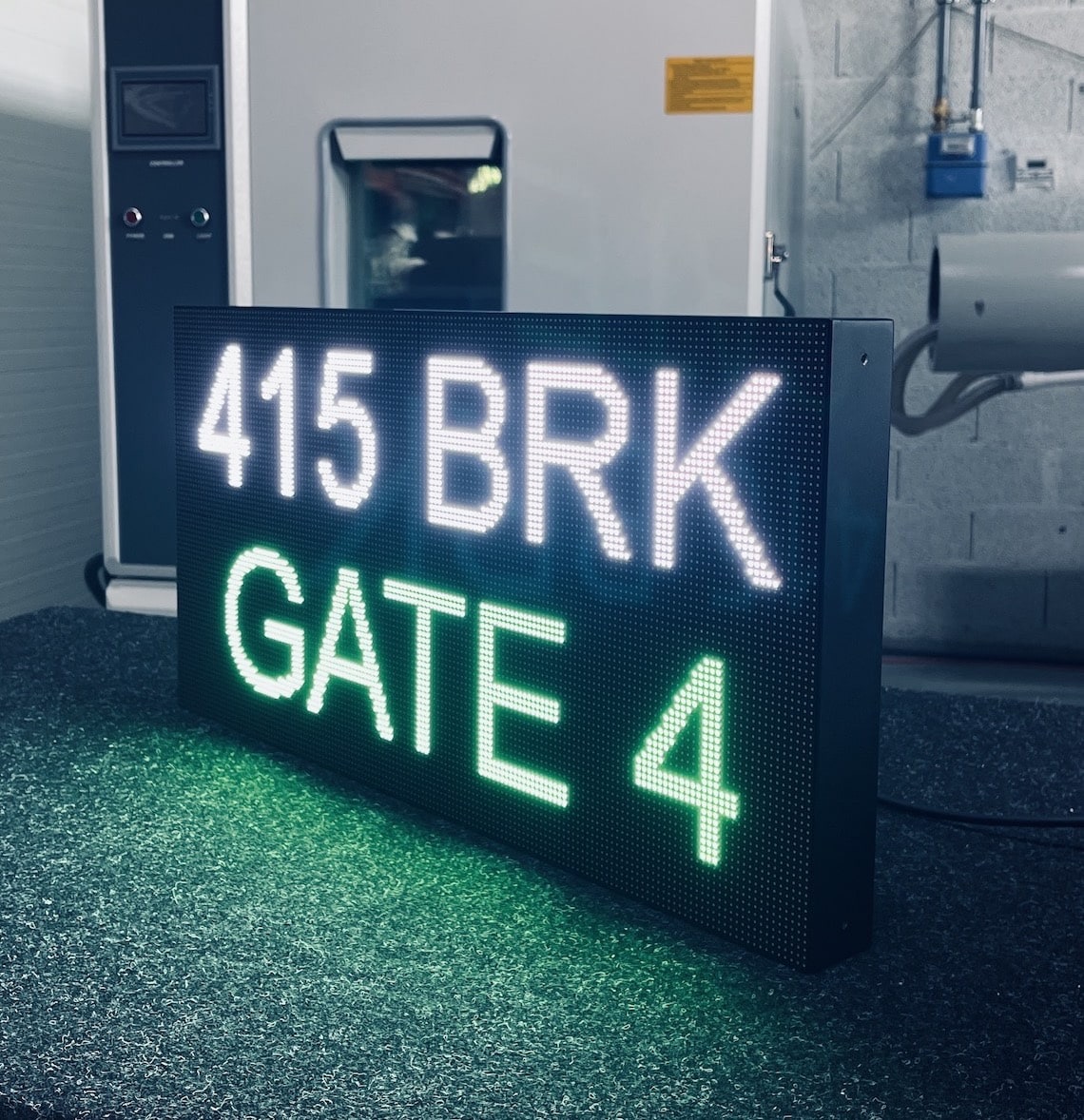

DS-640x320
The most widely deployed DS model — two-line text and graphic guidance.
Compact LED

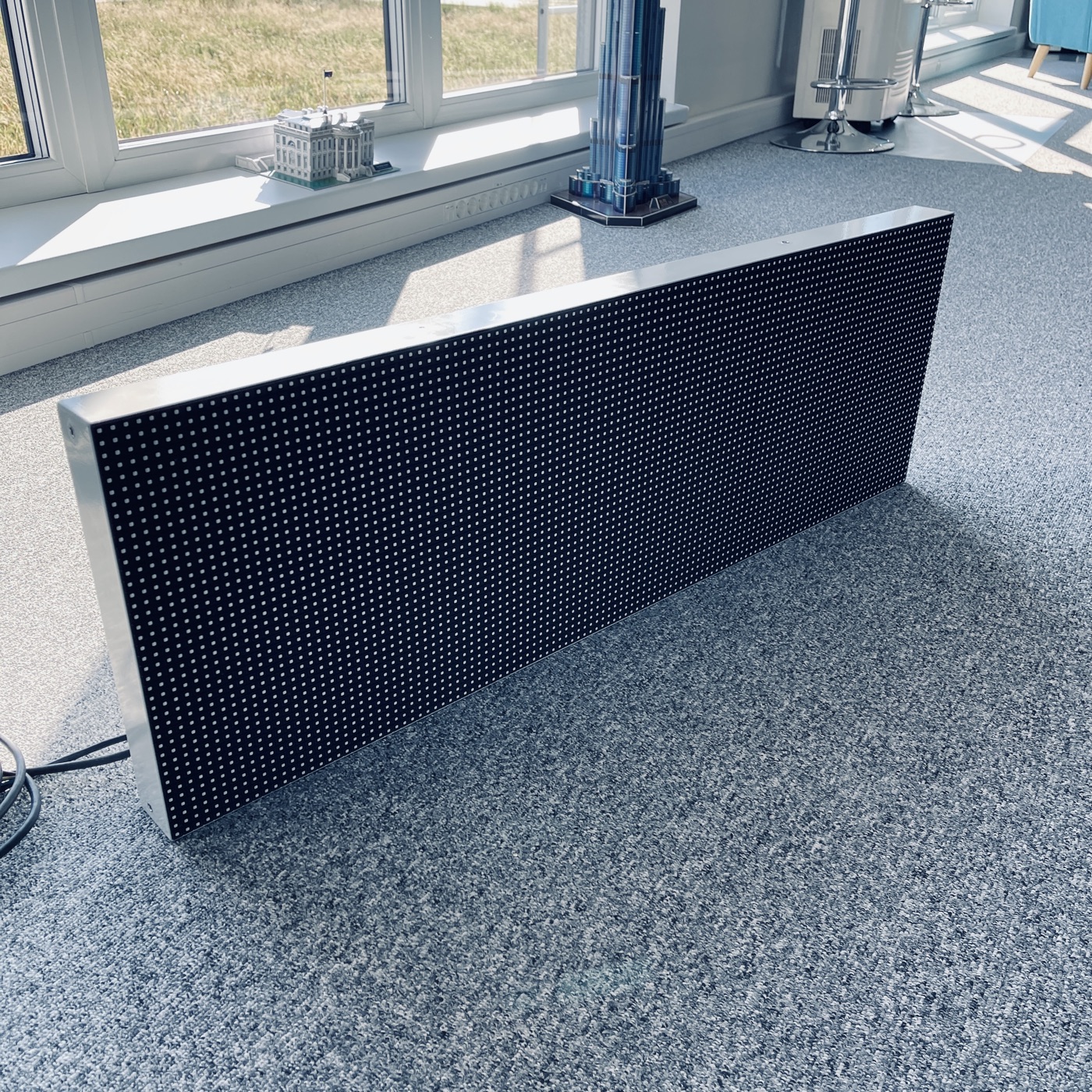

DS-960x320
Wide two-zone compact board for split-message control and queue management.
Compact LED

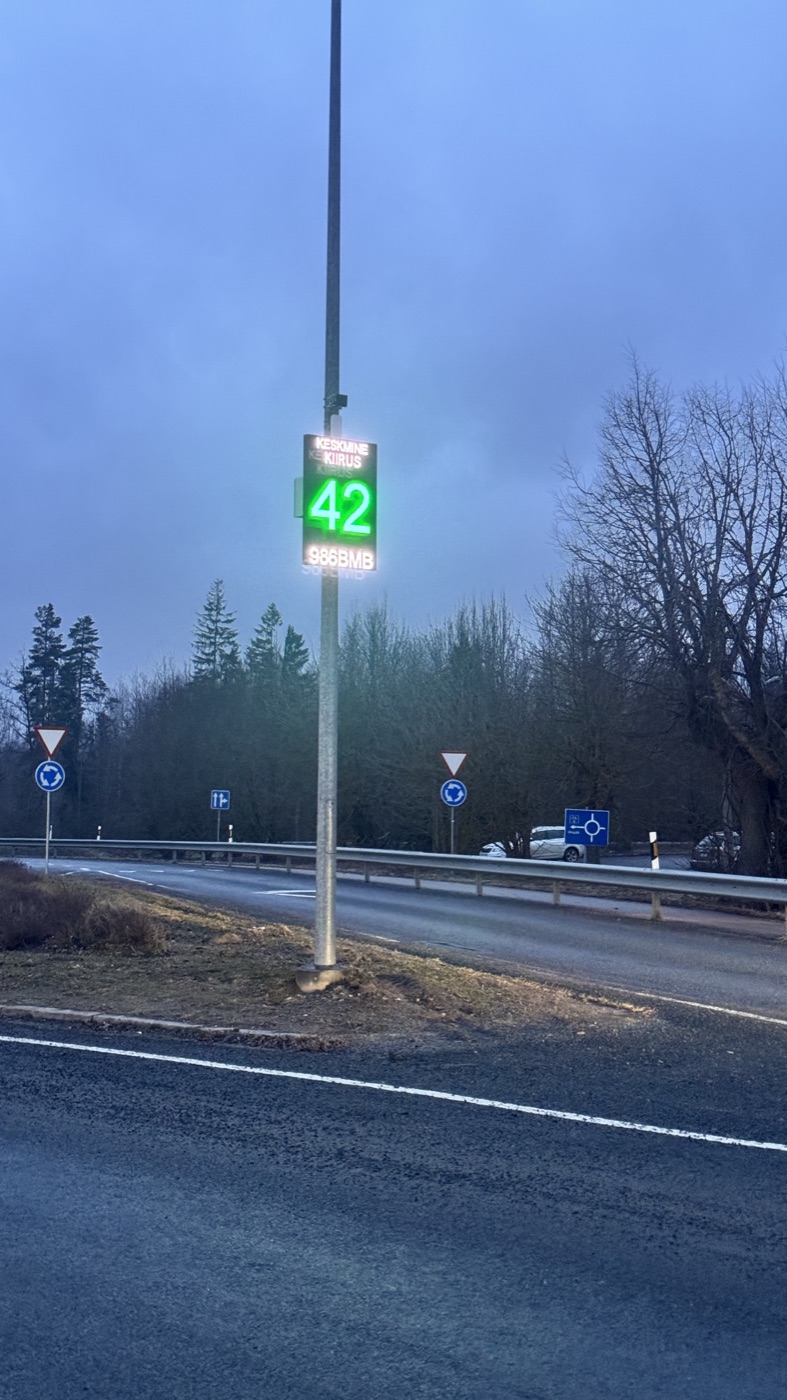

DS-960x640
Largest DS format — multi-line departure boards, warehouse status and gate displays.
Live deployments
This product in the field
Waybiller · Estonia
Real-Time Traffic Guidance at the Port of Kunda
Waybiller integrated Ampron's compact outdoor LED display at the Port of Kunda weighbridge — showing live weight, vehicle number and unloading instructions to truck drivers in real time.
Read case study →
Sheet metal manufacturer · Estonia
Truck Loading and Unloading Management LED Display System
LED message boards installed outside a sheet metal factory showing truck drivers their loading/unloading time slot and gate number — controlled automatically from the facility's truck management software.
Read case study →
Port of Tallinn (AS Tallinna Sadam), originally delivered via Hansab AS · Estonia
LED Message Boards for the Smart Port Solution at Port of Tallinn
About 170 LED message boards across the Old City Harbour A and D terminals, integrated with Nortal's Smart Port system since 2016, automating vehicle guidance from weighbridge to ferry gate.
Read case study →Specify this product for your project.
Contact us with installation location, display distance and required integration.
